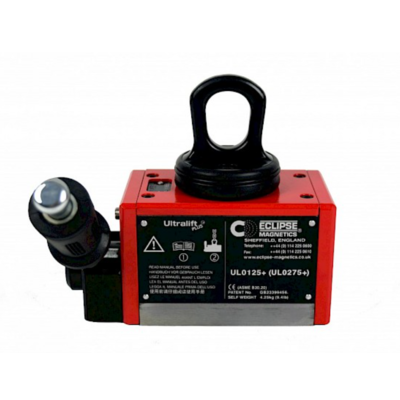

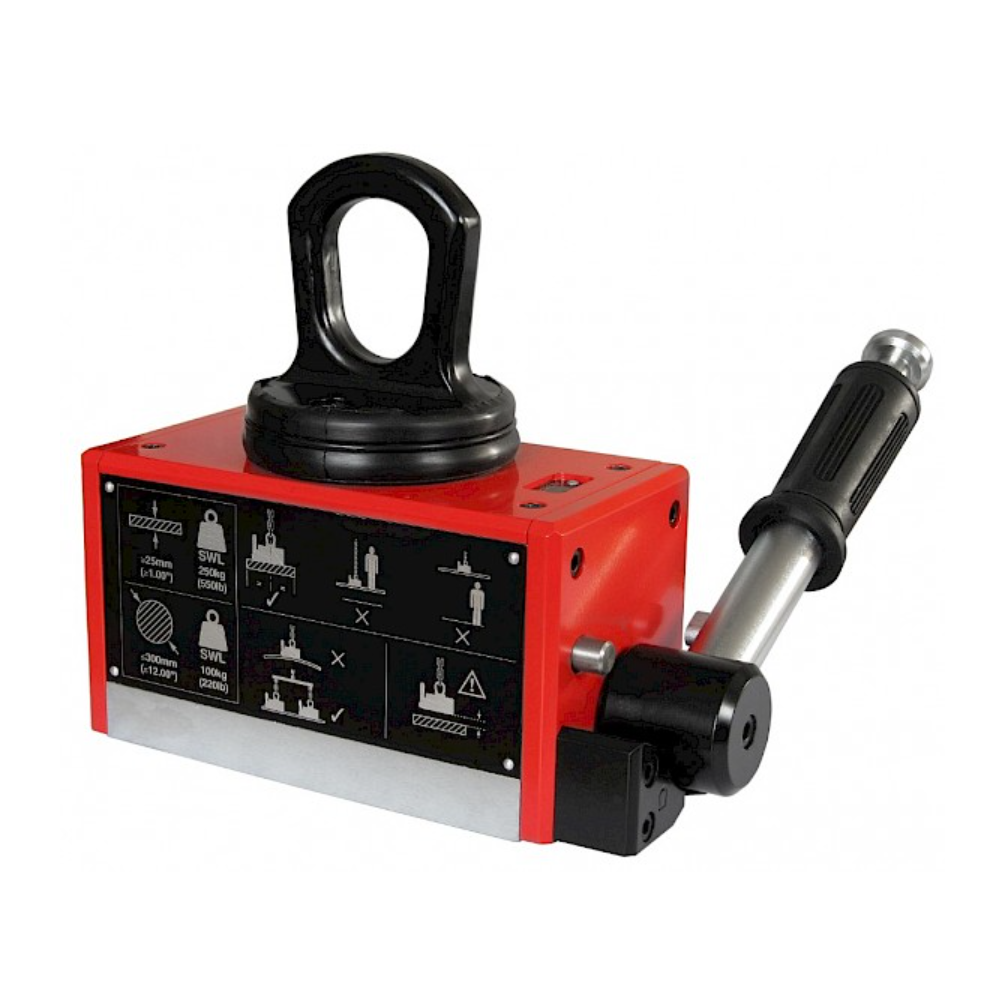

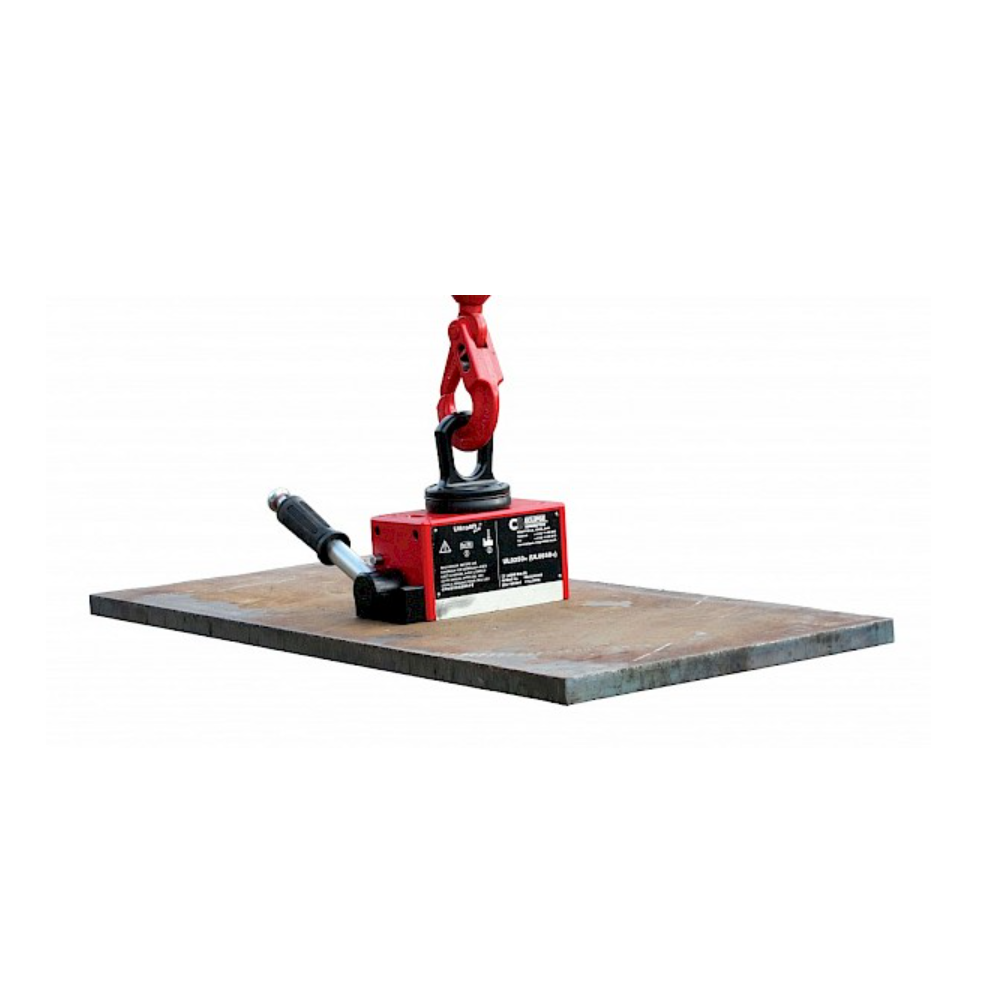

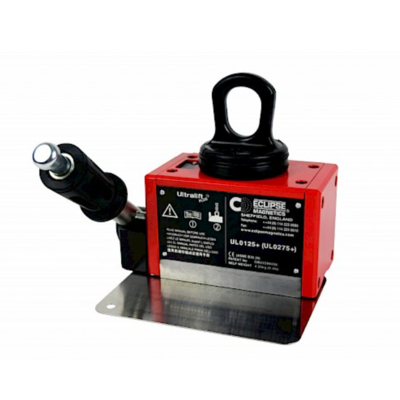

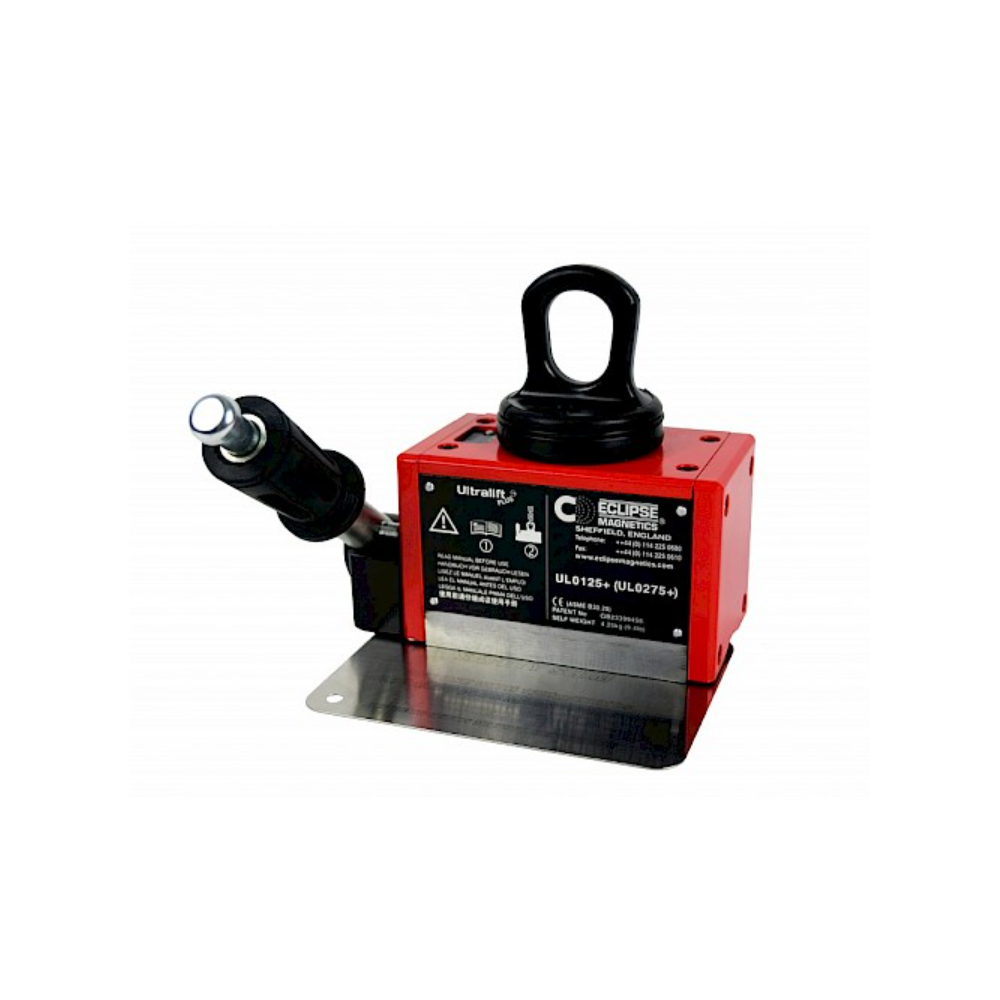

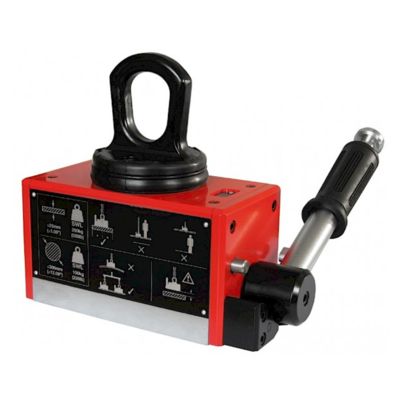

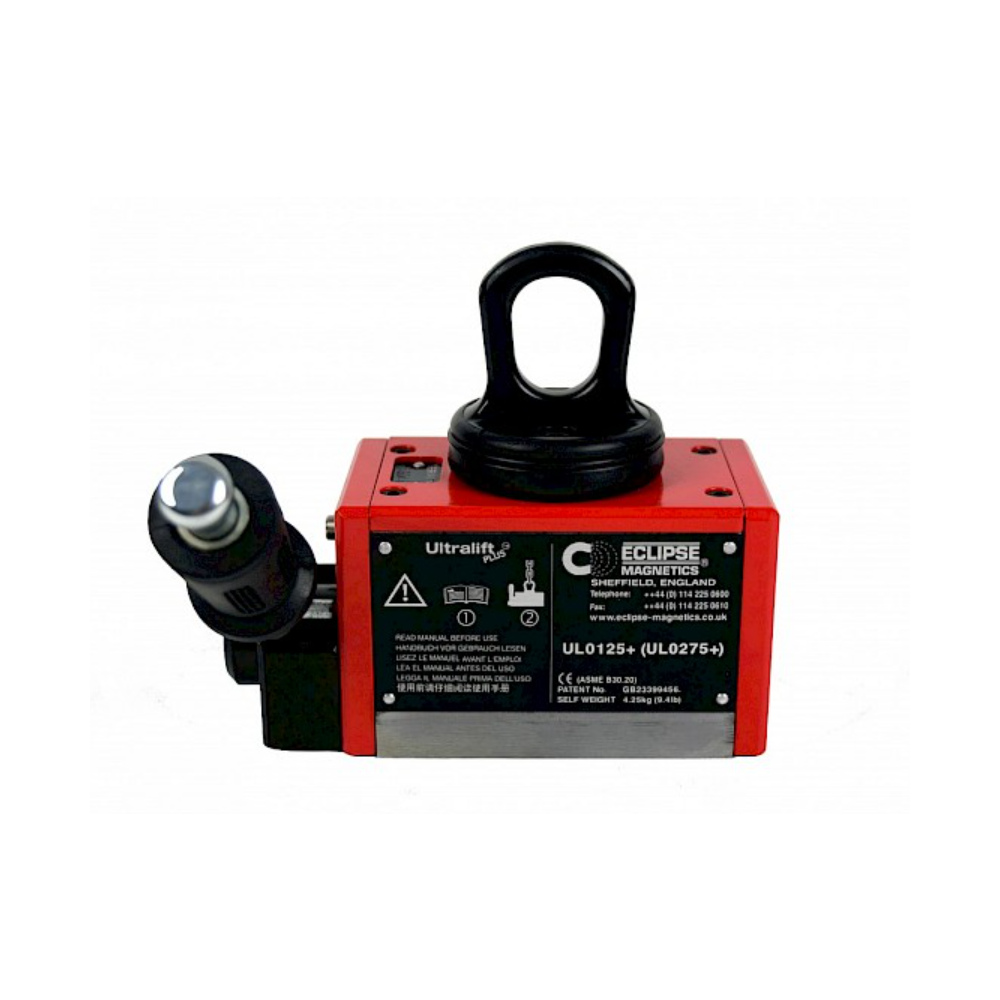

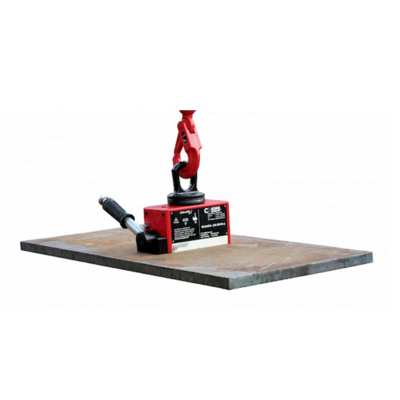

The premier Ultralift Plus lifting magnet provides fast and efficient lifting for a wide range of loads in the factory or workshop. It's capable of lifting both round and flat section loads.
Ultralift Plus uses high intensity neodymium 'rare earth' magnet material for the highest power to weight ratio. The material is permanently magnetic, and switching the Ultralift Plus on and off is manual, so no power is required and it has no operating costs. You can use it almost anywhere - just hook it to your hoist or crane. Ultralift Plus is backed by a 3 year warranty.
Ultralift Plus has a range of built in safety mechanisms:
- Lifting eye sensor - when under tension the lifting eye automatically locks the handle ensuring that the load cannot be released
- Safety shim - the safety shim enables pre-testing of the load thereby ensuring a 3:1 guaranteed safety factor
- Safety button - locks the handle in place preventing the accidental release of the load
Features:
- Easy to install
- Simple one man operation
- No power required
- Load surface not marked
- High performance magnet material providing high performance at a lower weight
- Saves space as access is only needed to the top of the load
- 3 safety mechanisms ensure safe lifting
- Material: End plates - aluminium - painted. Housing - mild steel. Pole feet - mild steel - plated.
- Marking: According to standard
- Temperature range: -10°C (14°F) up to +80°C (176°F)
- Standard: EN 13155, EN ISO 12100, ASME B30.20
- Safety factor: 3:1
