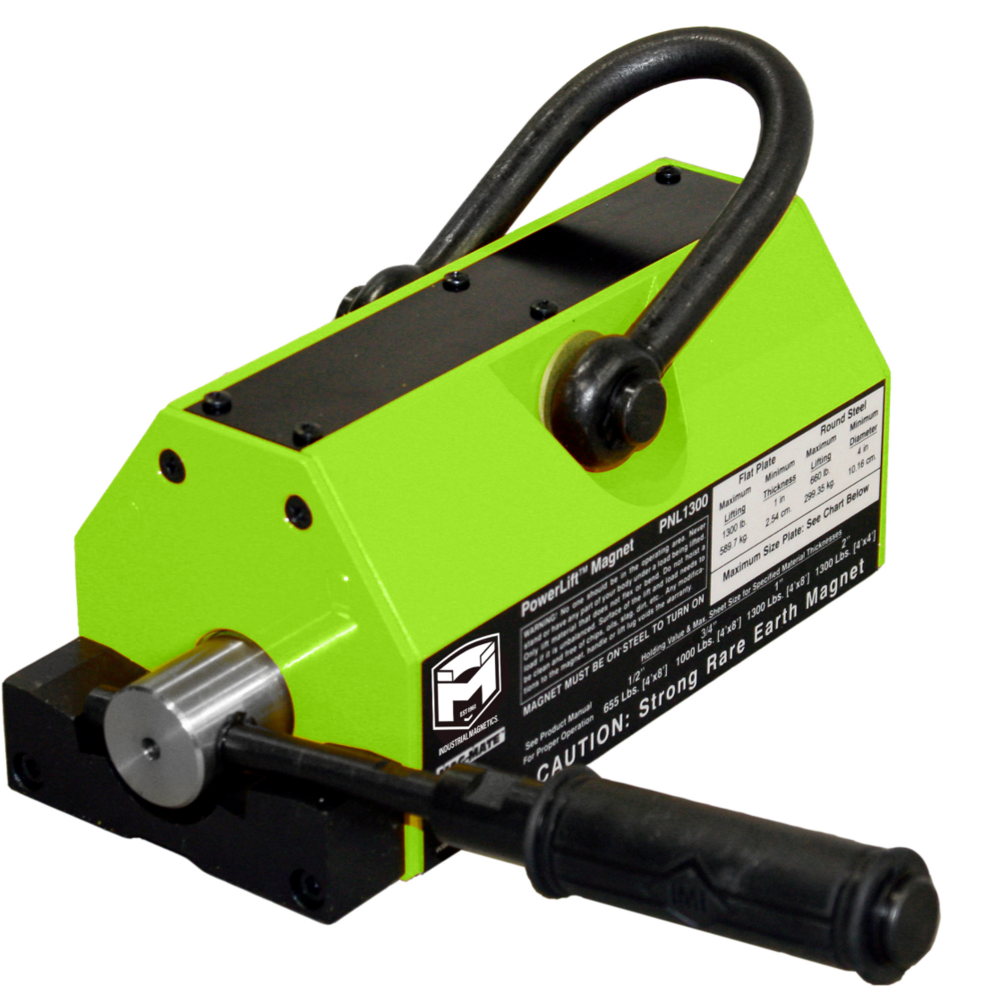

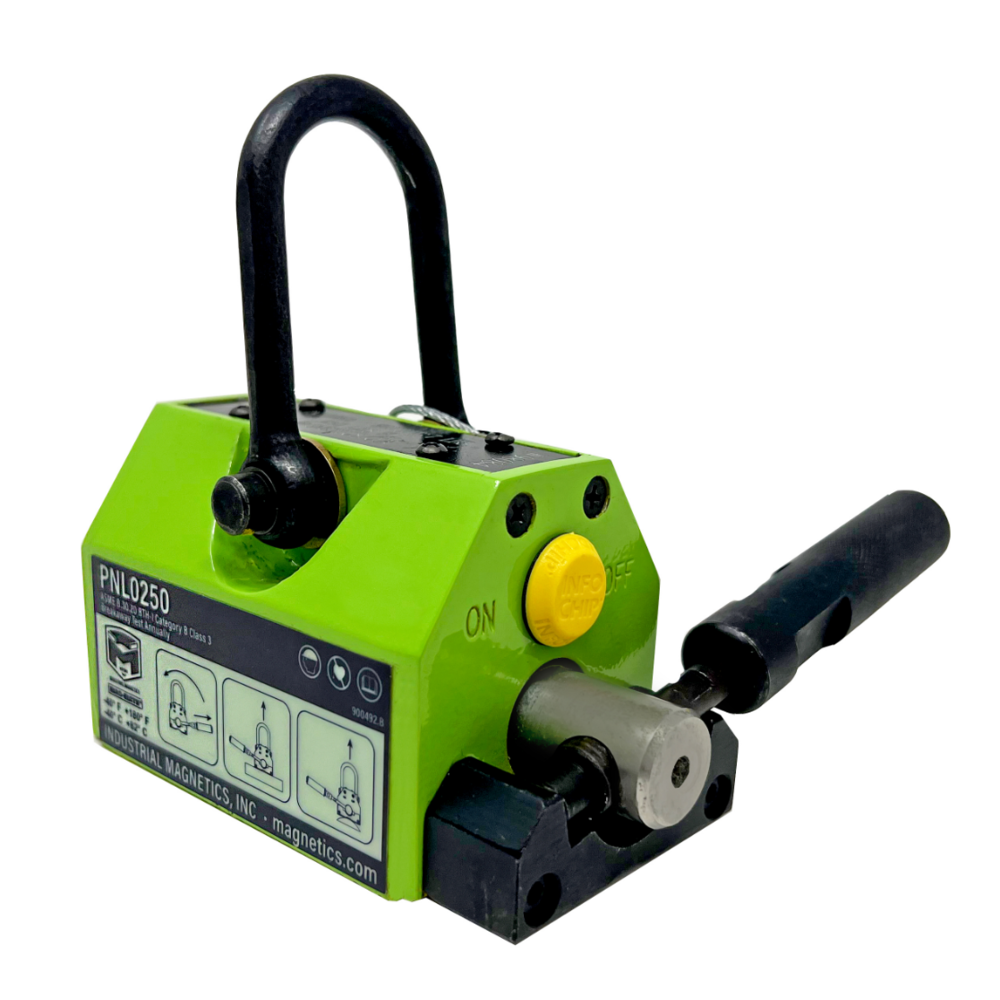

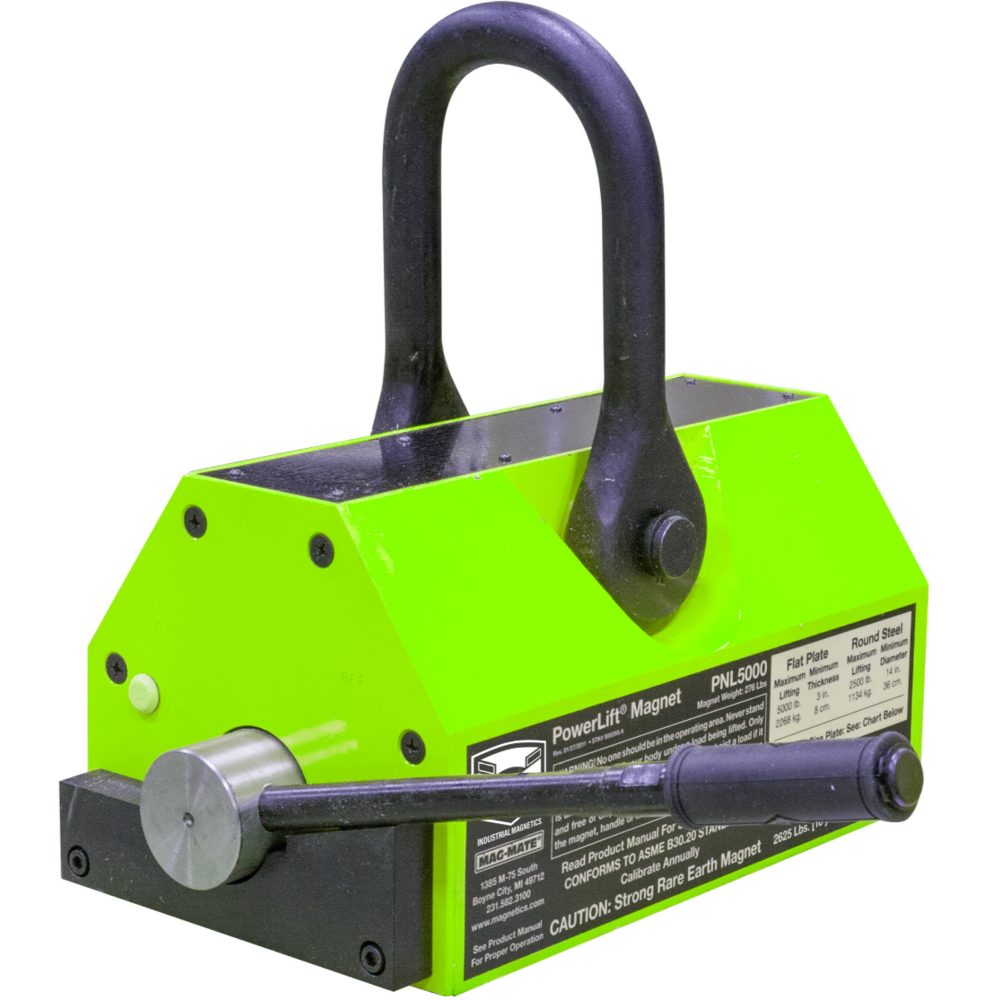

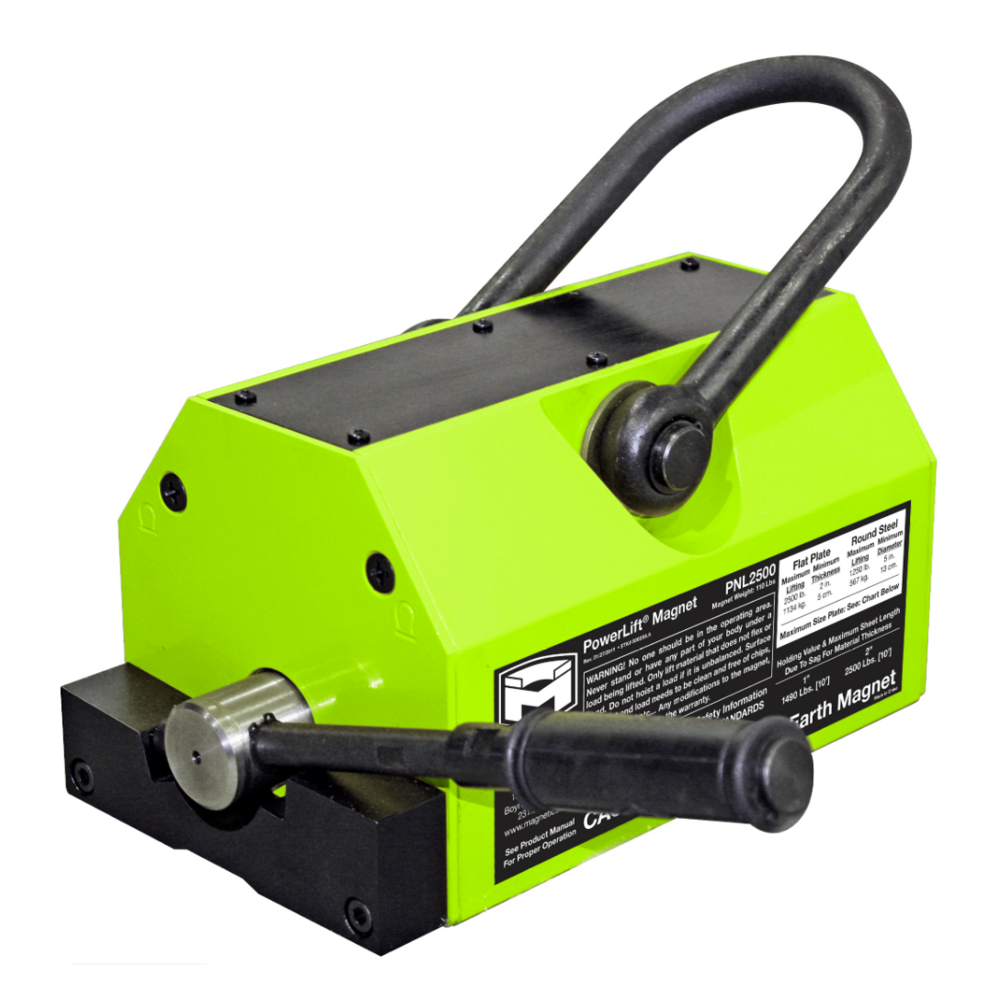

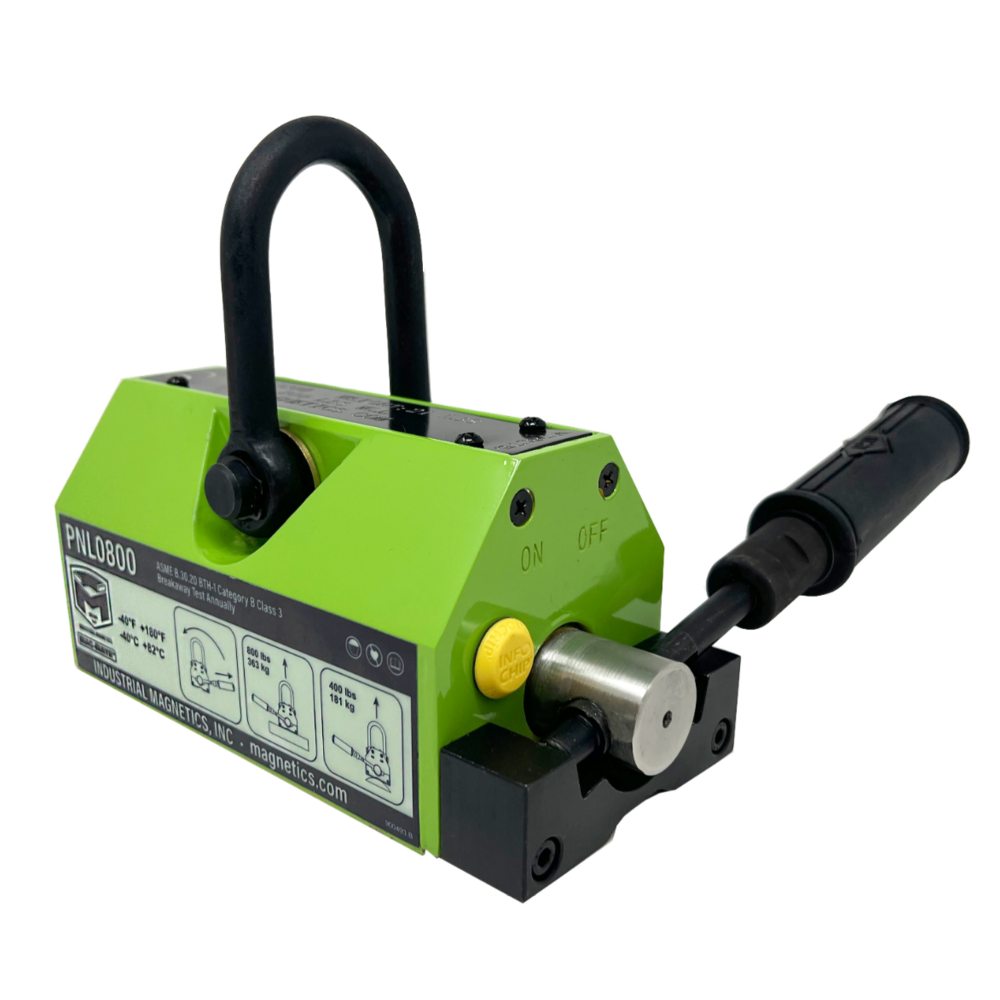

These compact switchable rare earth permanent lift magnets can be used on flat or round surfaces and contain an internal release On/Off device that does not contact or damage the surface of the part being lifted. Permanent magnetic lifts eliminate the fear of dropping the load being lifted due to power failures. The locking system is performed by first pulling on the handle to release the lock pin, then rotating the handle to the desired position. The locking feature prevents the handle from being bumped partially “On” and avoids giving the operator a false feeling that the magnet is holding safely.
Features:
- On/Off Rare Earth Permanent Magnet
- Handle locks in both On and Off position
- Lifts flat or round loads
- Easy internal manual release does not contact the load
- ASME B30.20 BTH-1 Design Category B Service Class 3
- Temperature range: -40°F (-40°C) up to +180°F (+82°C)
- Safety factor: 3:1
MIN. PLATE AND BAR MATERIAL THICKNESSES

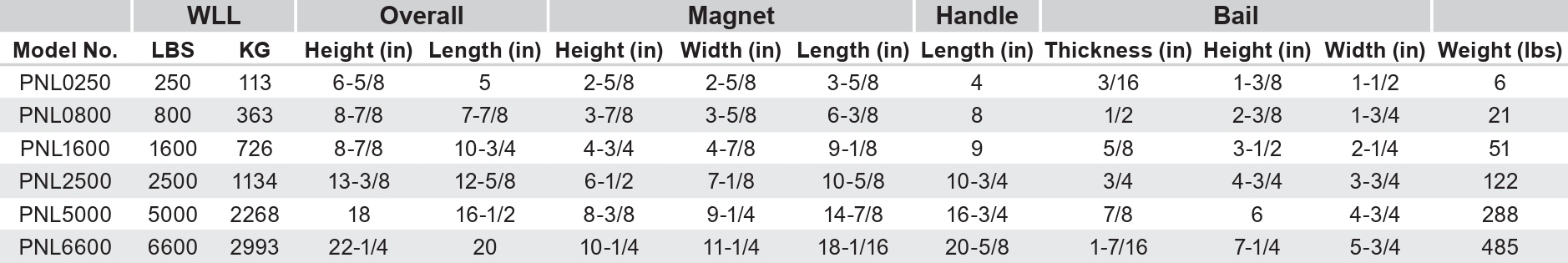

MEASUREMENTS
