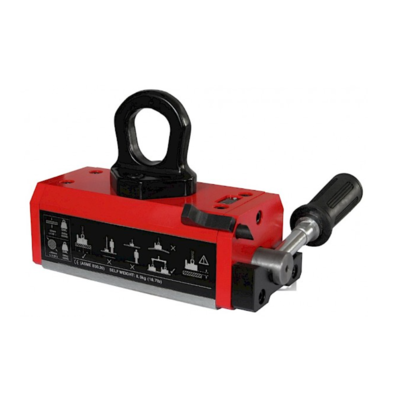

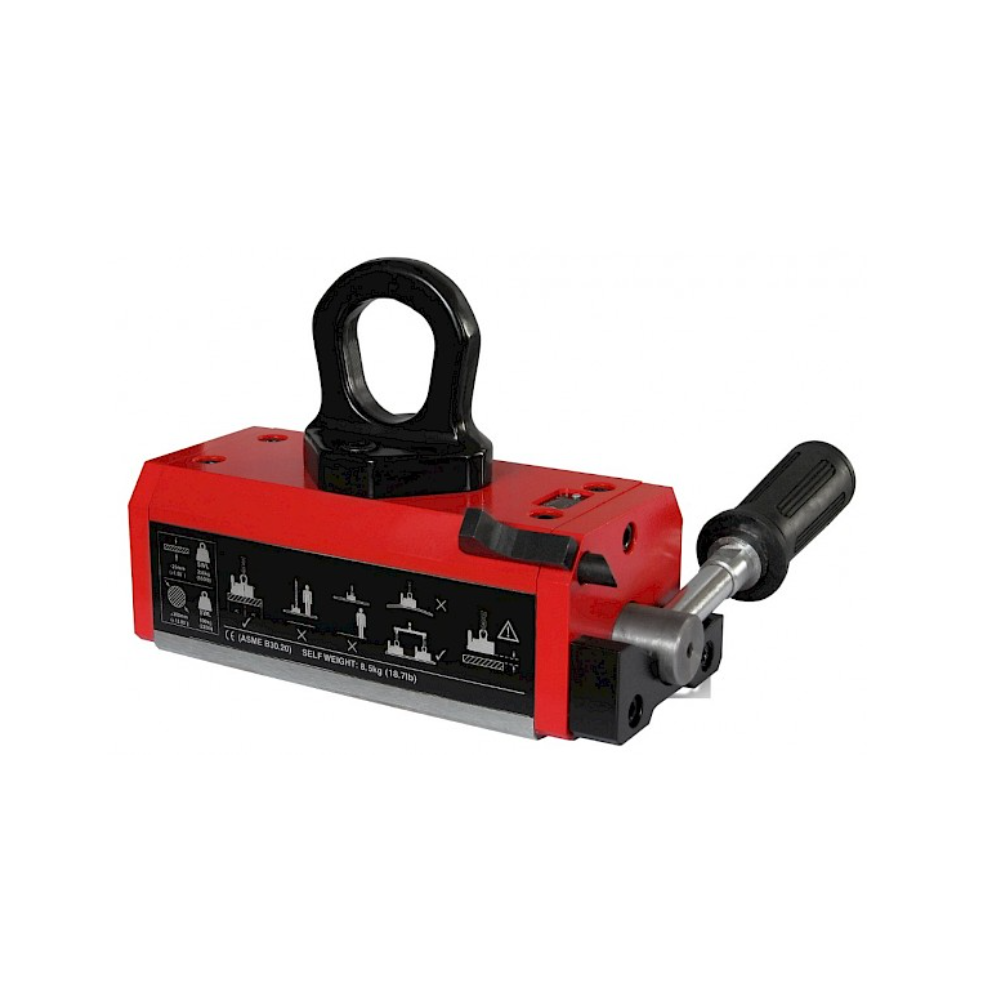

Ultralift LM is a cost effective lifting magnet which provides fast and efficient lifting for flat and round section steel. Ultralift LM uses high intensity a neodymium 'rare earth' magnet material for the highest power to weight ratio.
The material is permanently magnetic, and switching the Ultralift LM on and off is manual, no power is required and it has no operating costs. It can be used anywhere - just hook it to your hoist or crane. Ultralift LM comes complete with a safety button which locks the handle in place and prevents accidental release of the load.

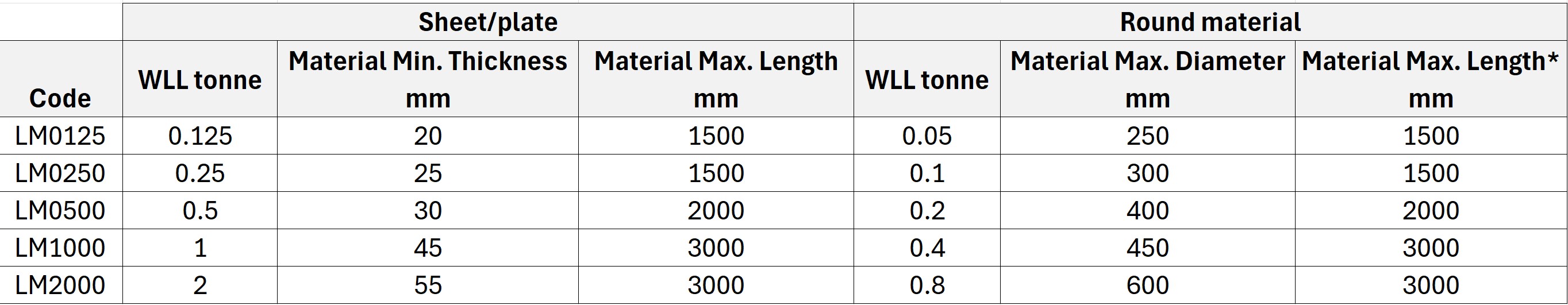

Suitable for:
- Ferrous sheet/plate thicknesses greater than 20mm maximum weight of 3000kg
- Ferrous round bar up to 600mm diameter maximum weight of 800kg
Features:
- Easy to install
- Simple one man operation
- No power required
- Load surface not marked
- High performance magnet material providing high performance at a lower weight
- Save space as access is only needed to the top of the load
- Handle locking mechanism ensures safe lifting
- Facilitates more lifts per hour
- Reduced risk of load damage
- Material: End plates - aluminium - painted. Housing - mild steel. Pole feet - mild steel - plated.
- Marking: According to standard
- Temperature range: -10°C (14°F) up to +80°C (176°F)
- Standard: EN 13155, EN ISO 12100, ASME B30.20
