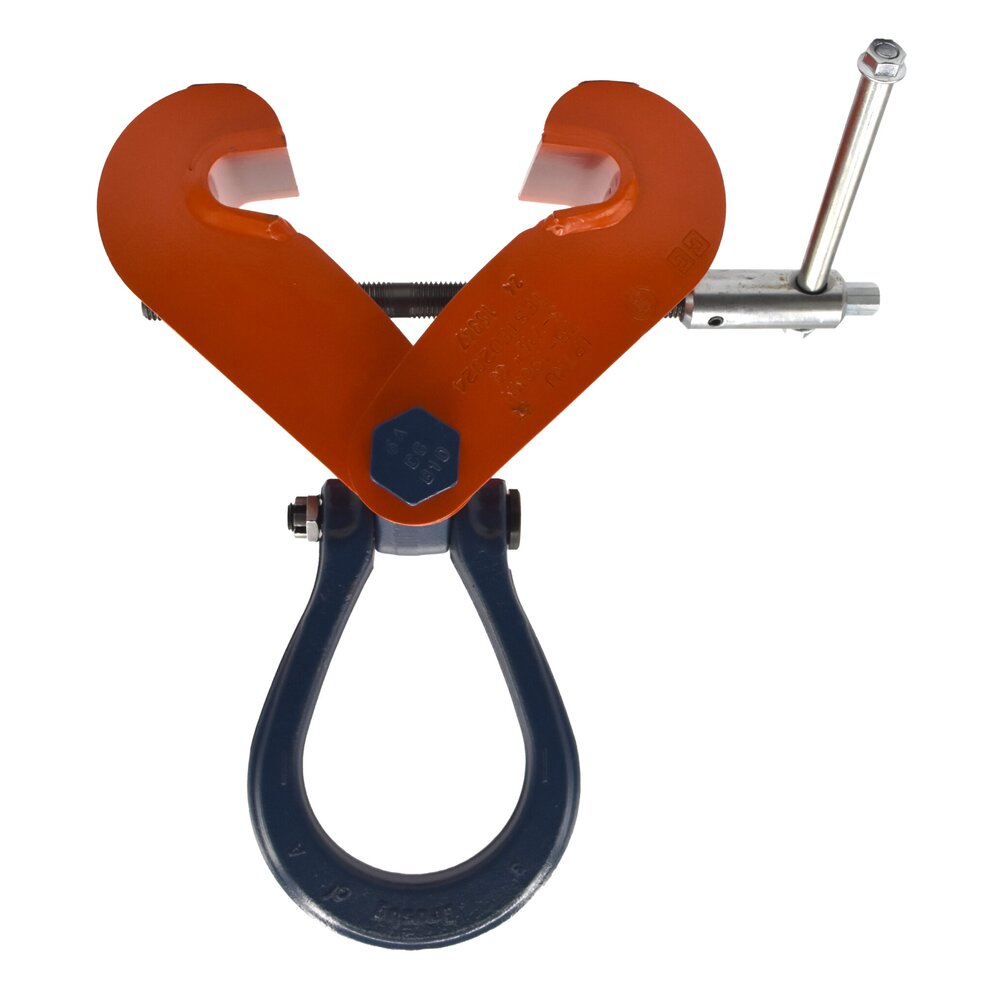

Beam Clamp - IPTK

The Crosby IPTK beam lifting clamps are designed for transferring steel beams and attaching lifting tackle. Available with a fixed hoisting eye, without a hoisting eye, with a hinged hoisting eye or with a double locking device, the range accommodates different lifting arrangements. Multiple working

Show more

Part code:

The Crosby IPTK beam lifting clamps are designed for transferring steel beams and attaching lifting tackle. Available with a fixed hoisting eye, without a hoisting eye, with a hinged hoisting eye or with a double locking device, the range accommodates different lifting arrangements. Multiple working load limits and jaw openings allow selection according to beam dimensions and lifting requirements.

Best used for:

  • Transferring steel beams in industrial lifting and handling operations.
  • Applications requiring different hoisting eye configurations and jaw openings.

Product benefits:

  • Welded alloy steel body provides strength in a compact design.
  • Multiple jaw openings and capacities support selection for different beam sizes.
  • Individually proof tested to 2 times the WLL provides documented load verification.
  • Individual serialization and included test certificates support traceability and inspection records.
  • Available maintenance and repair kits support servicing and continued use.
  • Material: Steel
  • Marking: According to standard, CE-mark, WLL, Logo, Type, Jaw opening, Serial number, Proof load test date
  • Temperature range: -40°C (-40°F) up to +100°C (+212°F)
  • Standard: EN 13155
