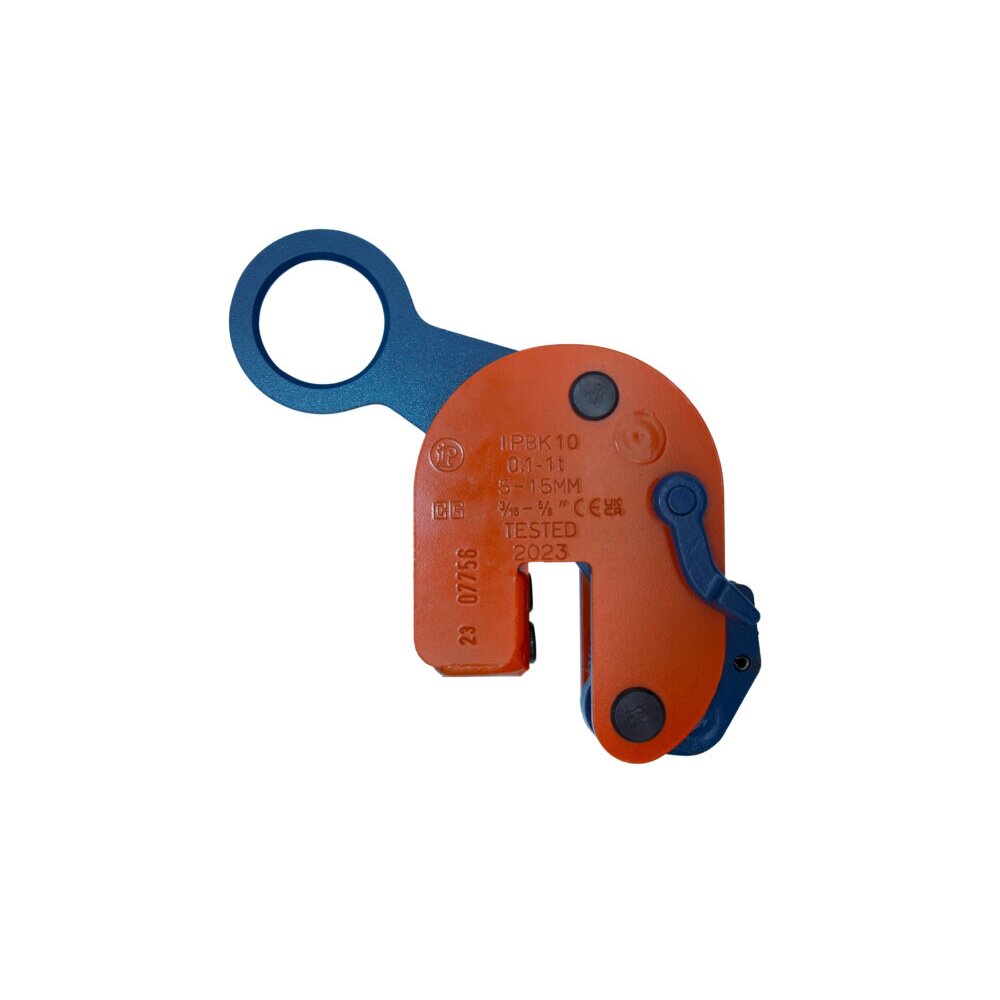

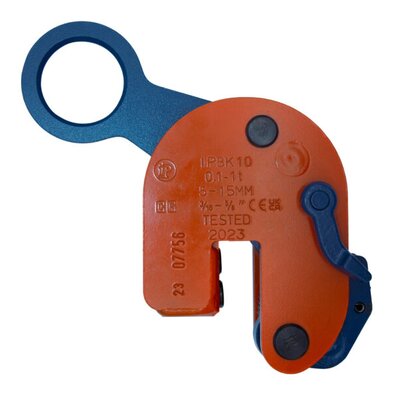

Beam Clamp - IPBK10

The Crosby IP IPBK10 lifting clamp is designed for the transfer and stacking of steel beams in industrial lifting operations. Its welded alloy steel body provides strength in a compact design, while available working load limits from 0.5 to 4 tonnes and jaw openings from 5 to 28 mm accommodate diffe

Show more

Part code:

The Crosby IP IPBK10 lifting clamp is designed for the transfer and stacking of steel beams in industrial lifting operations. Its welded alloy steel body provides strength in a compact design, while available working load limits from 0.5 to 4 tonnes and jaw openings from 5 to 28 mm accommodate different beam handling requirements. Each clamp is individually proof tested to twice its working load limit and supplied with a test certificate.

Best used for:

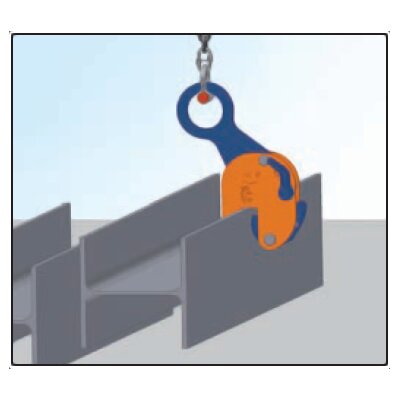

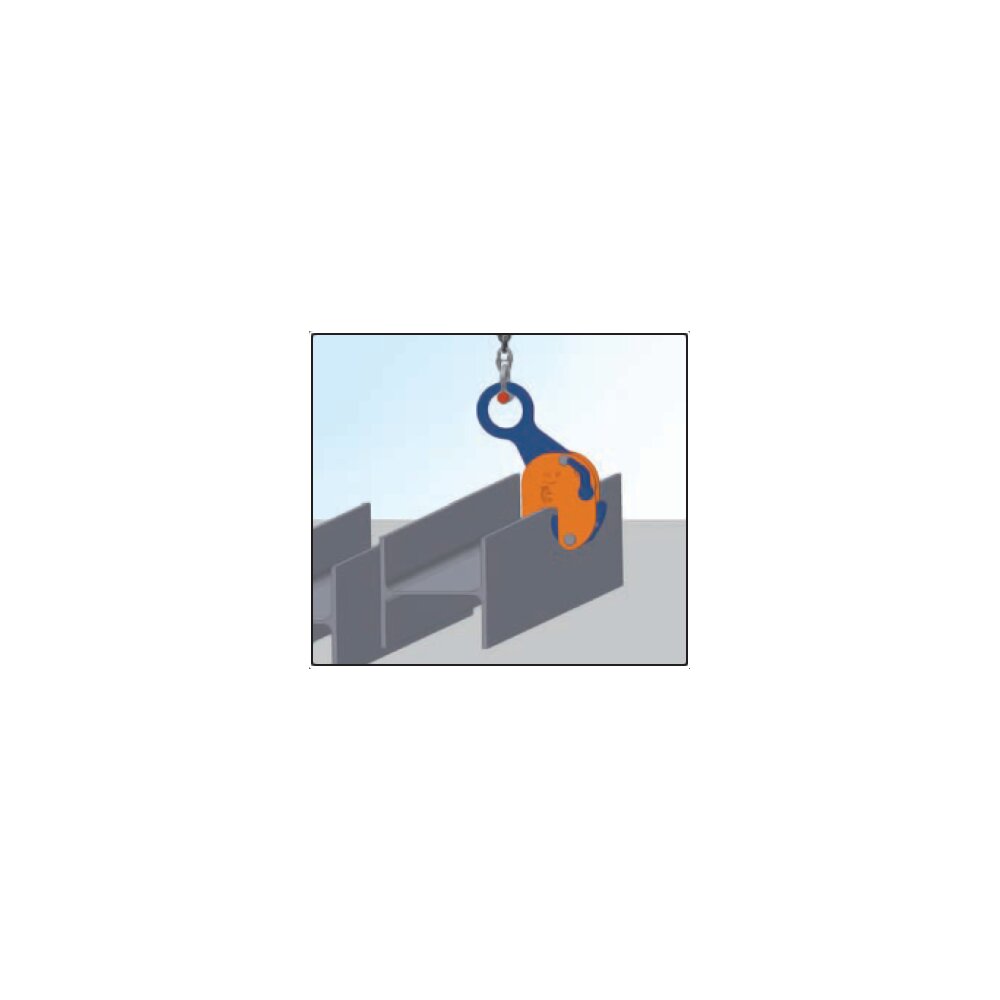

  • Transferring and stacking steel beams in workshops and industrial environments.
  • Beam handling applications requiring a suitable jaw opening and verified working load limit.

Product benefits:

  • Welded alloy steel body combines structural strength with compact dimensions.
  • Multiple capacities and jaw openings support different beam handling requirements.
  • Individual proof testing at 2 × WLL provides documented load verification.
  • Individual serial numbers and included test certificates support traceability and inspection records.
  • Available maintenance and repair kits support ongoing clamp servicing.
  • Material: Alloy steel.
  • Marking: According to standard, CE-mark, WLL, Logo, Type, Jaw opening, Serial number, Proof load test date
  • Temperature range: -40°C (-40°F) up to +100°C (+212°F)
  • Standard: EN 13155
  • Warning: A minimum load of 10% of the WLL is required.
    Download Document
