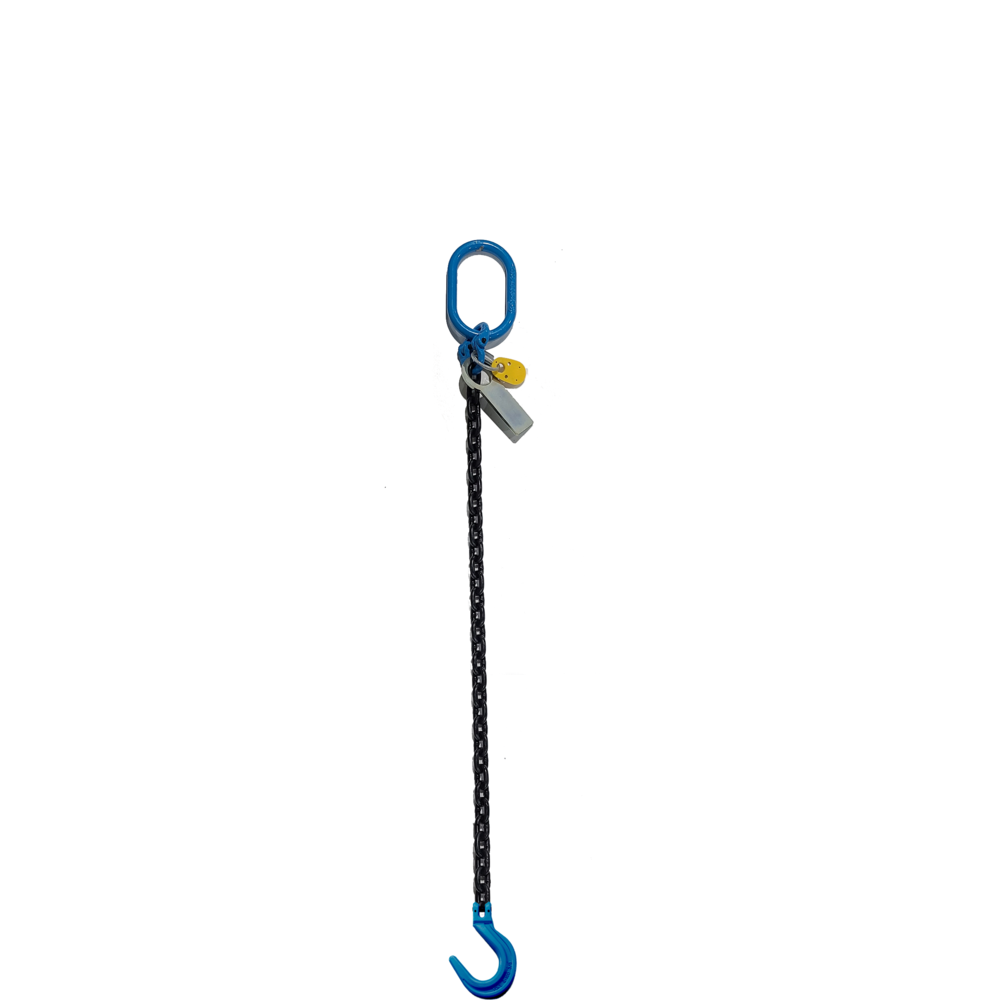

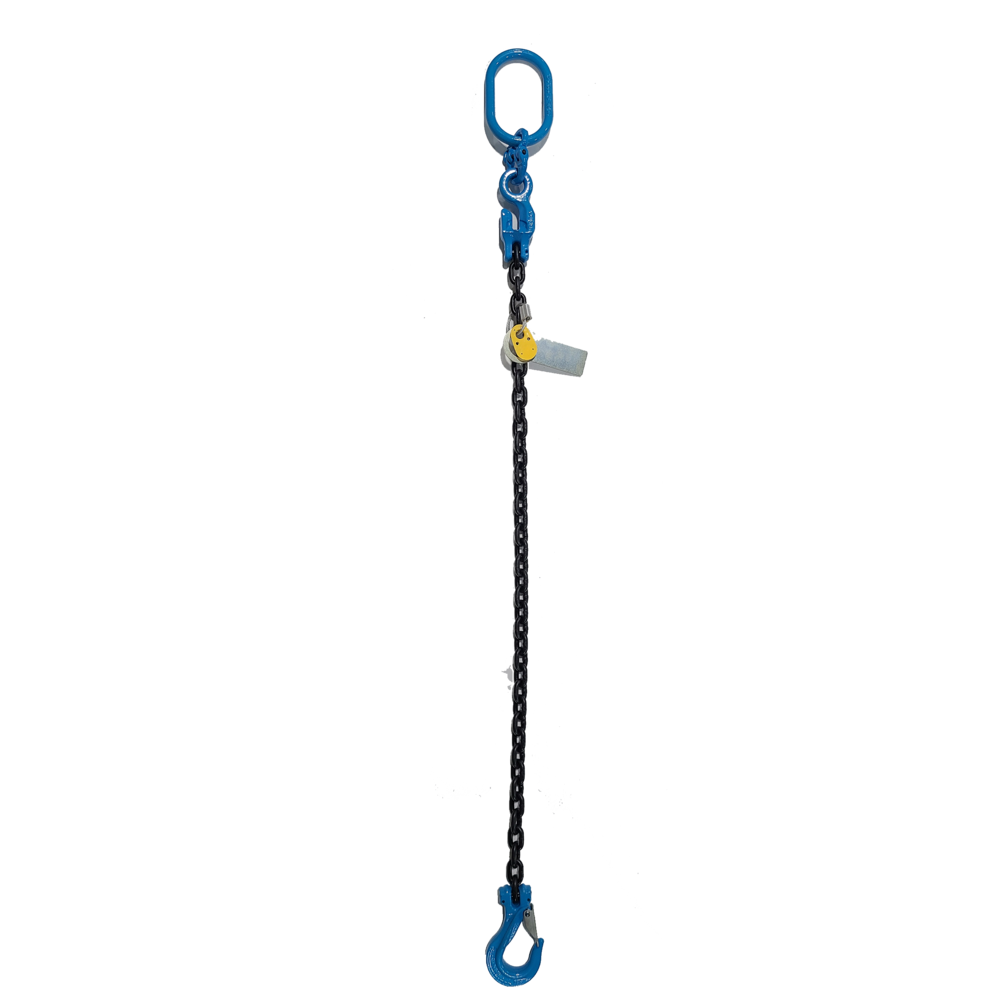

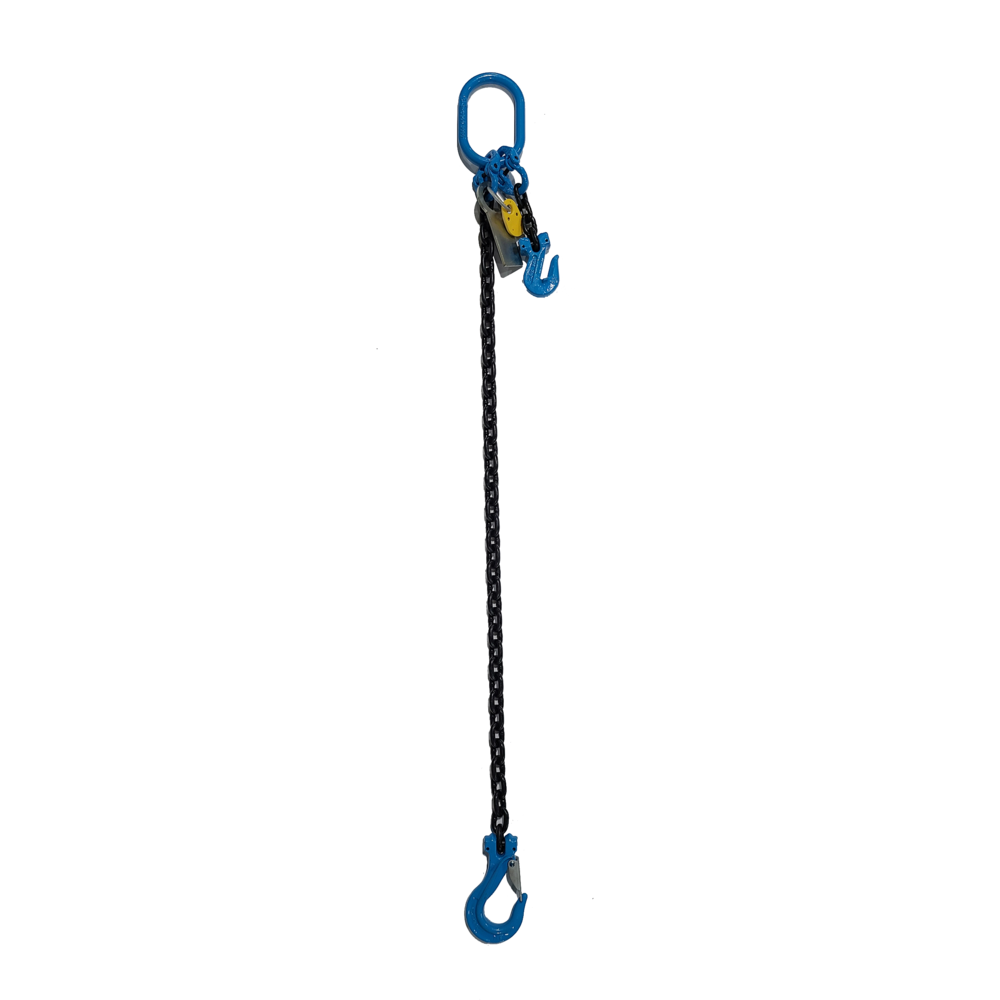

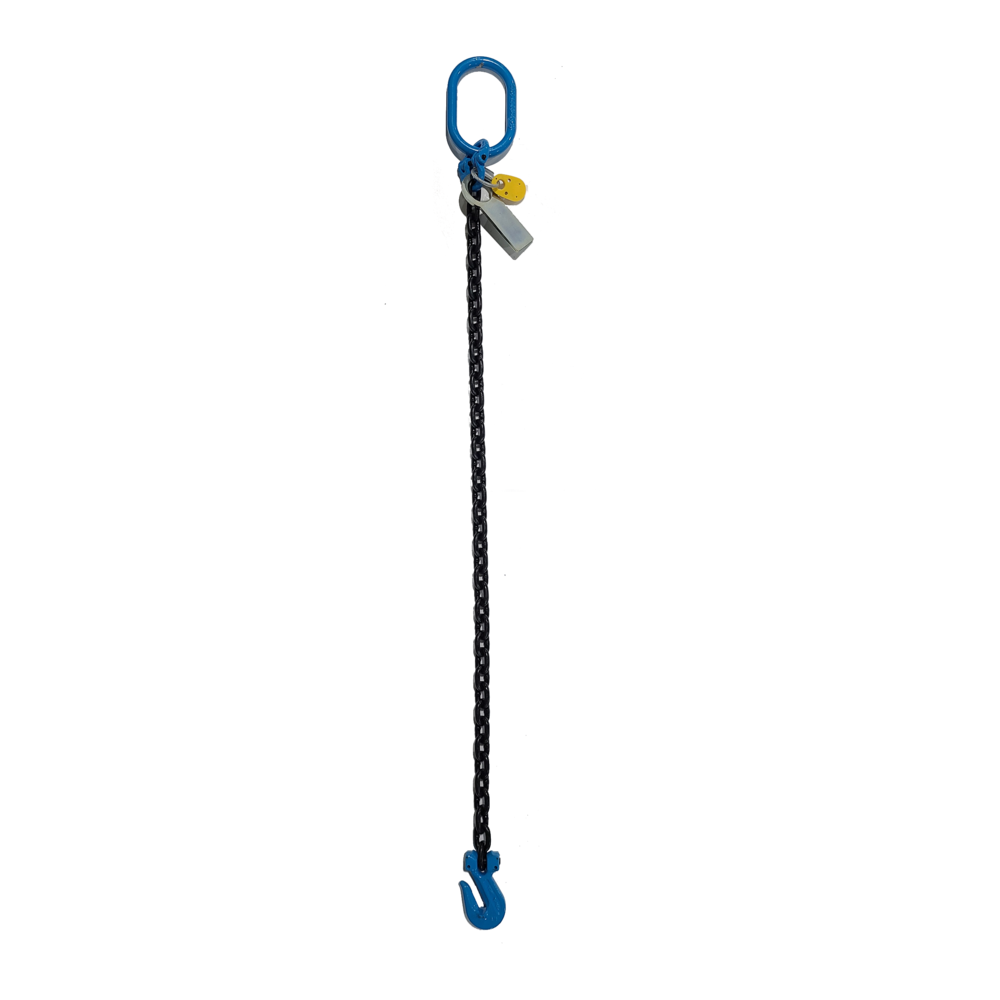

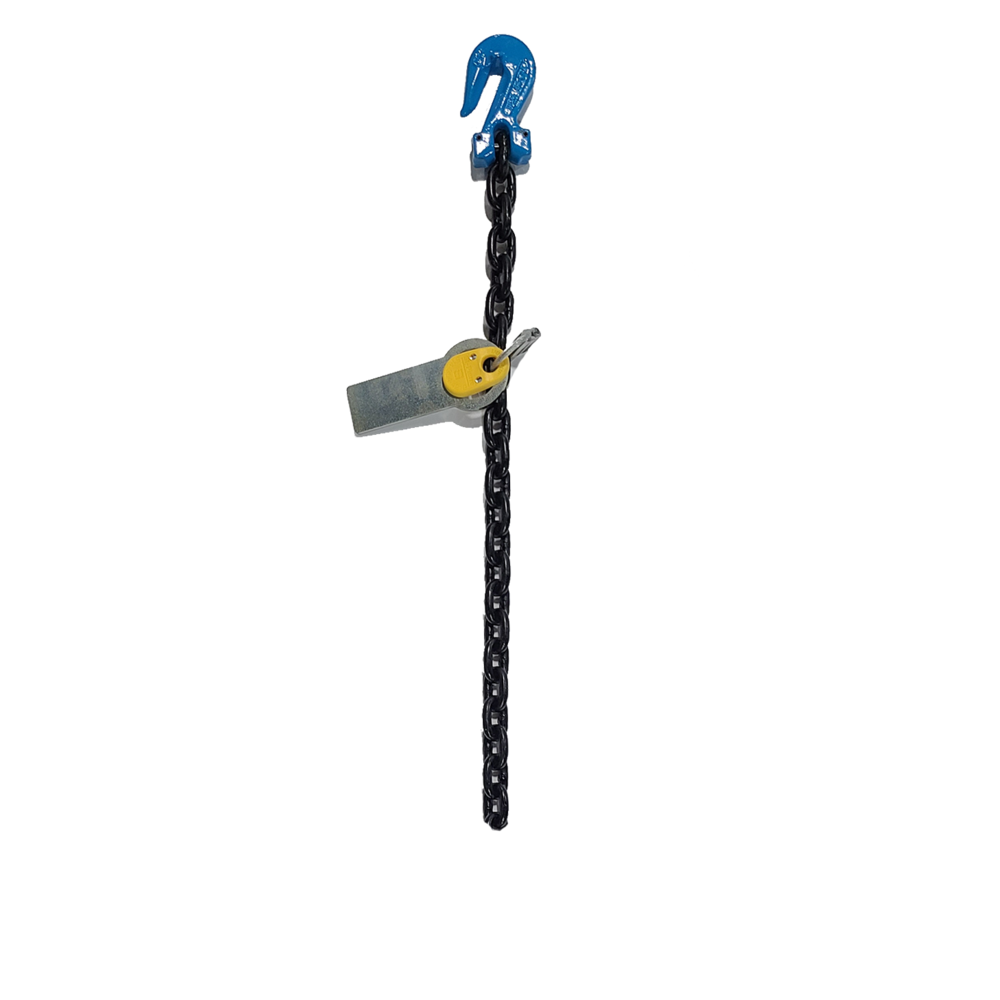

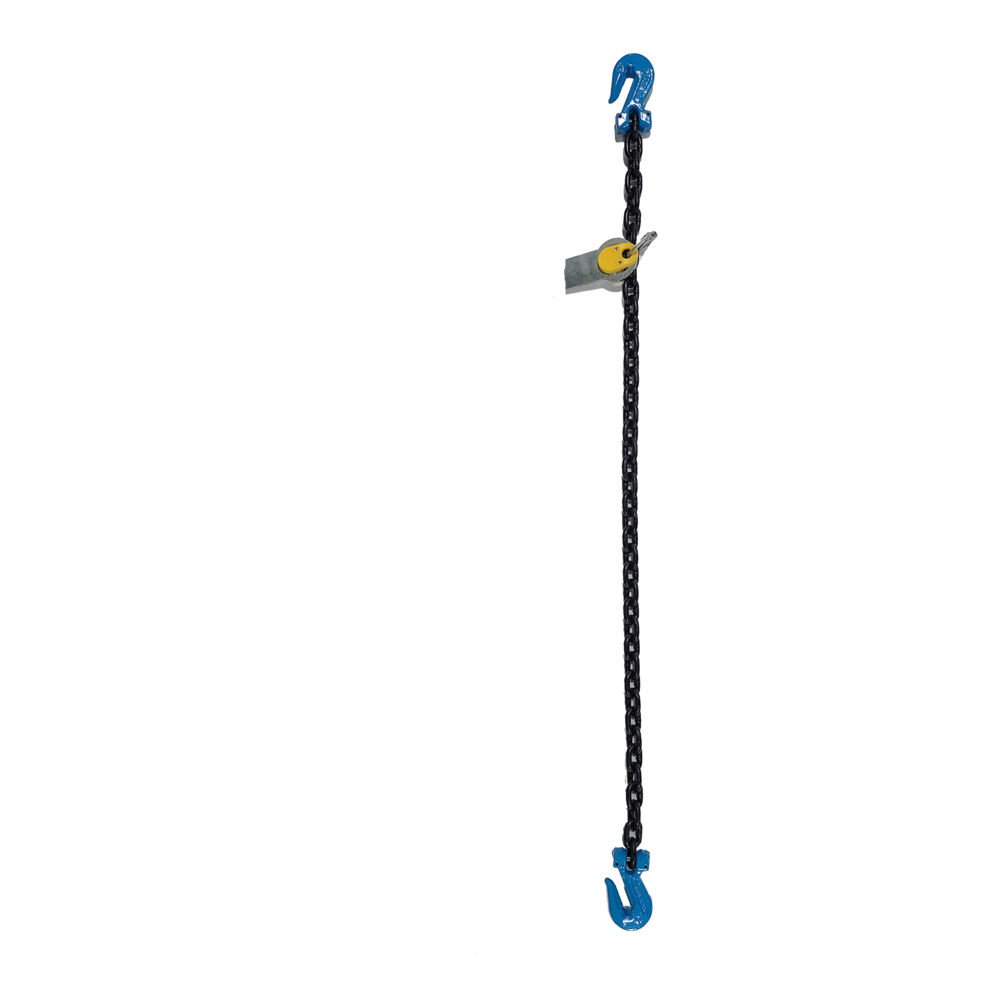

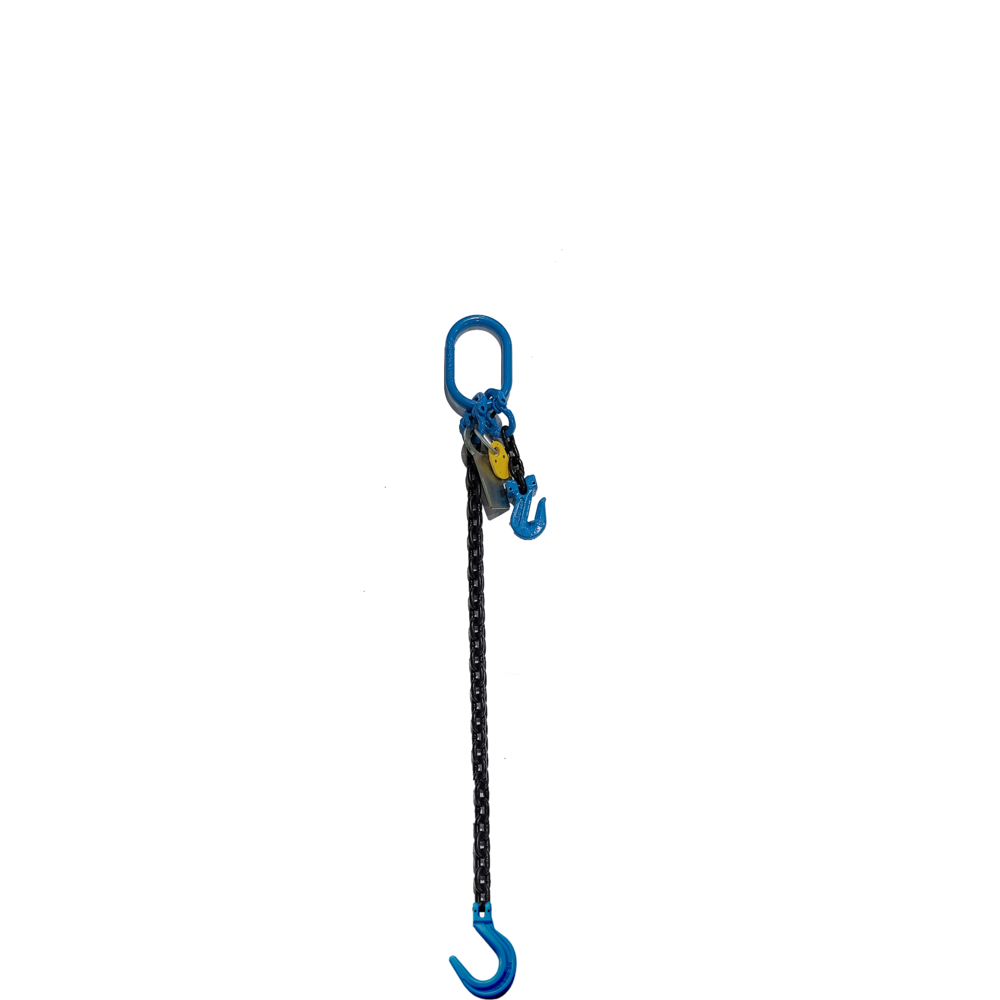

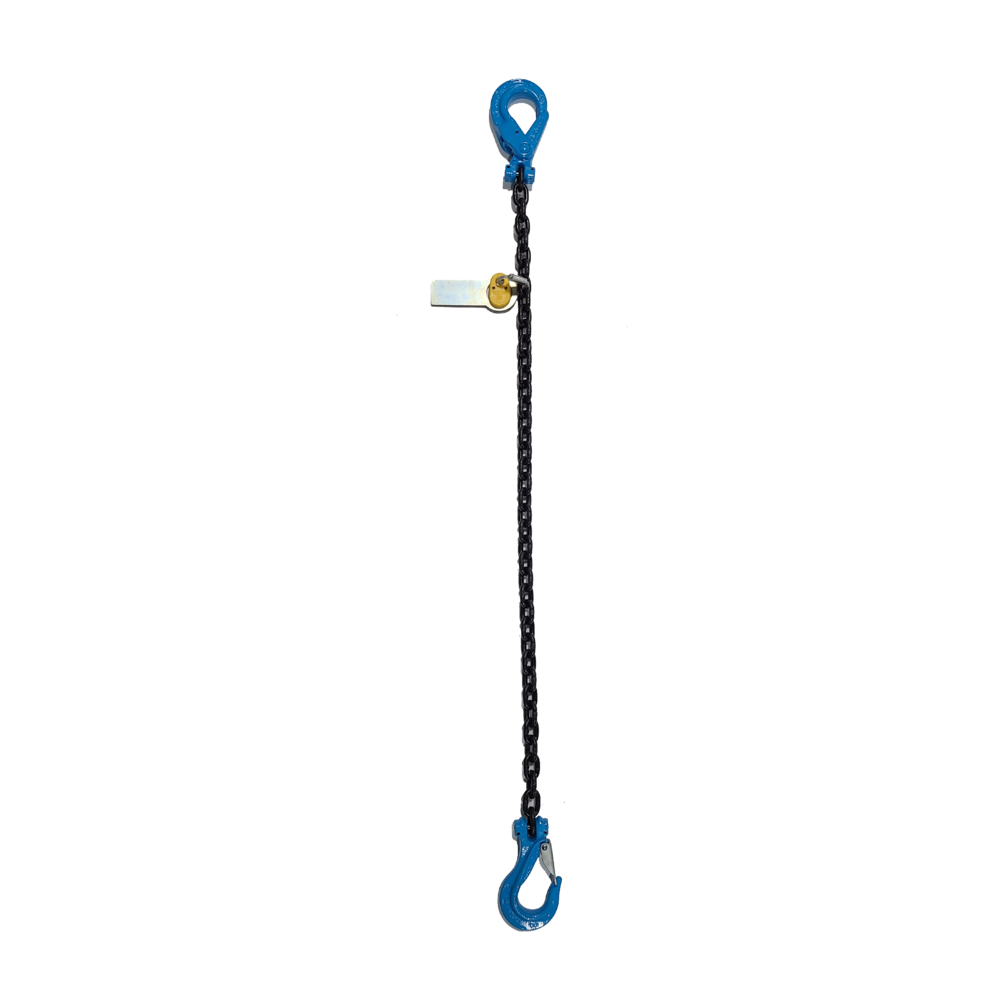

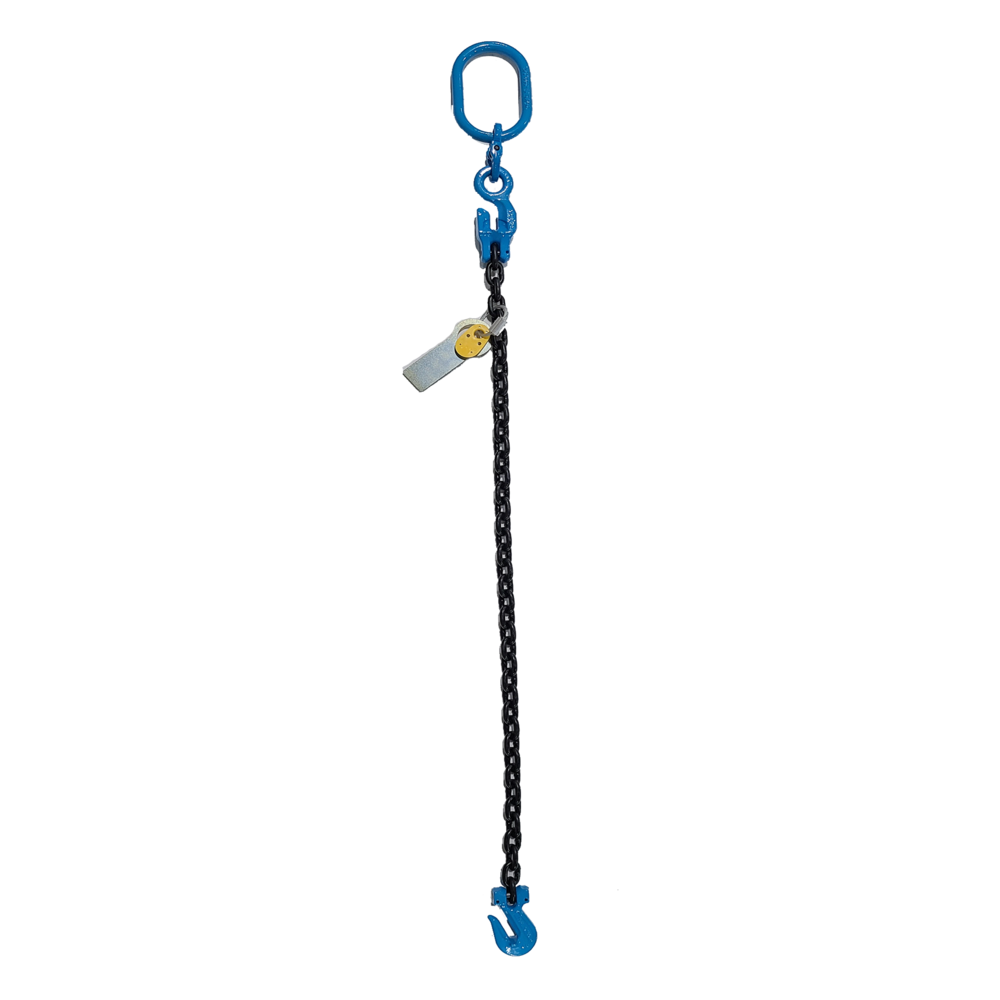

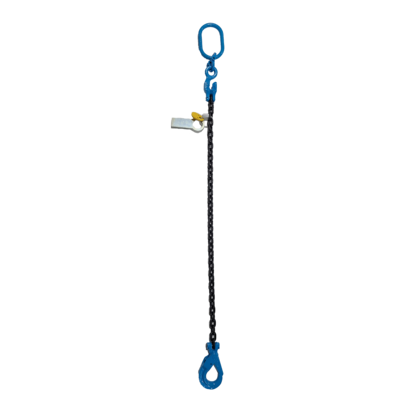

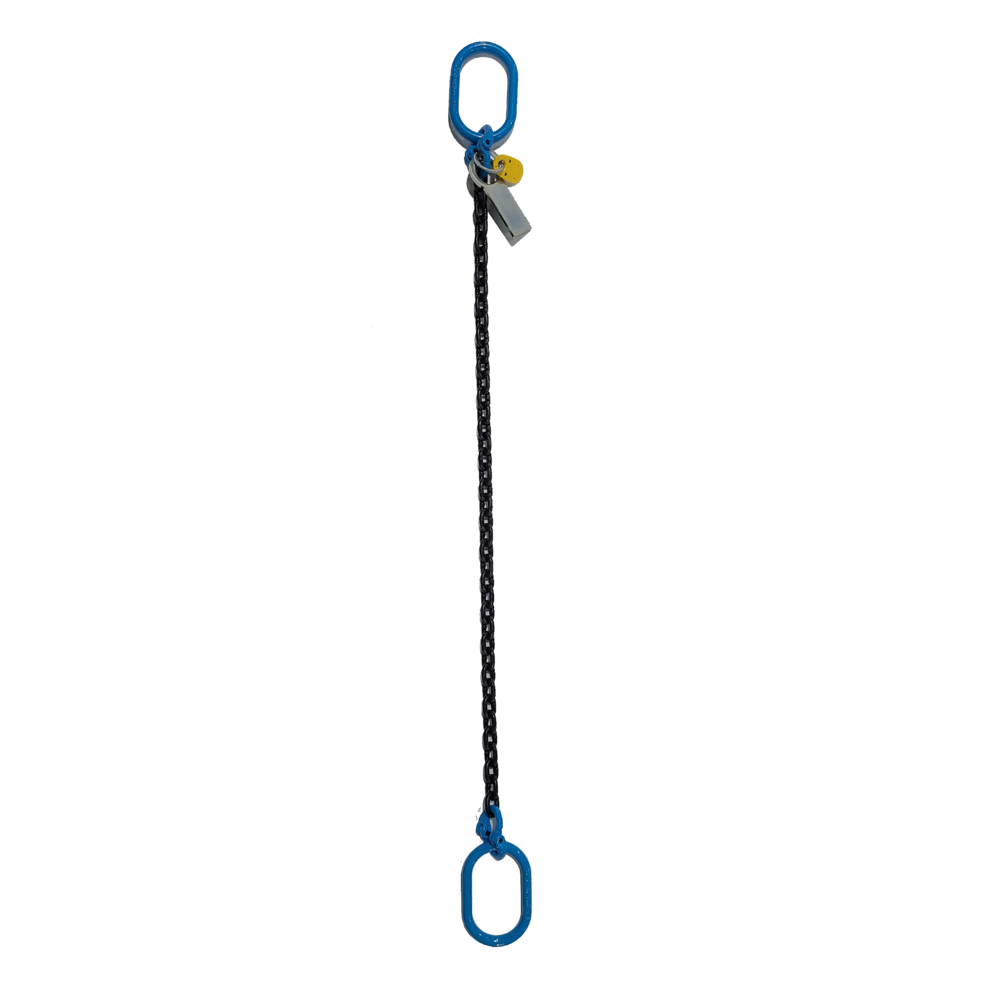

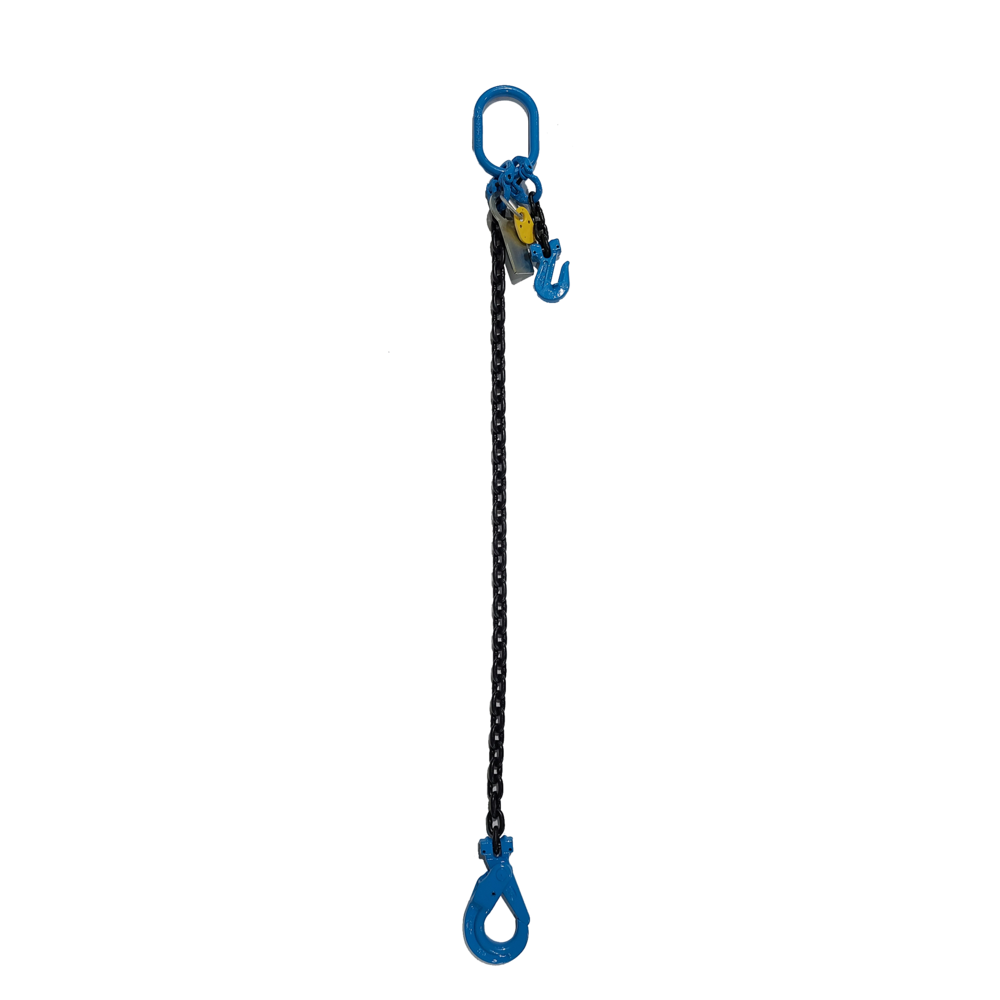

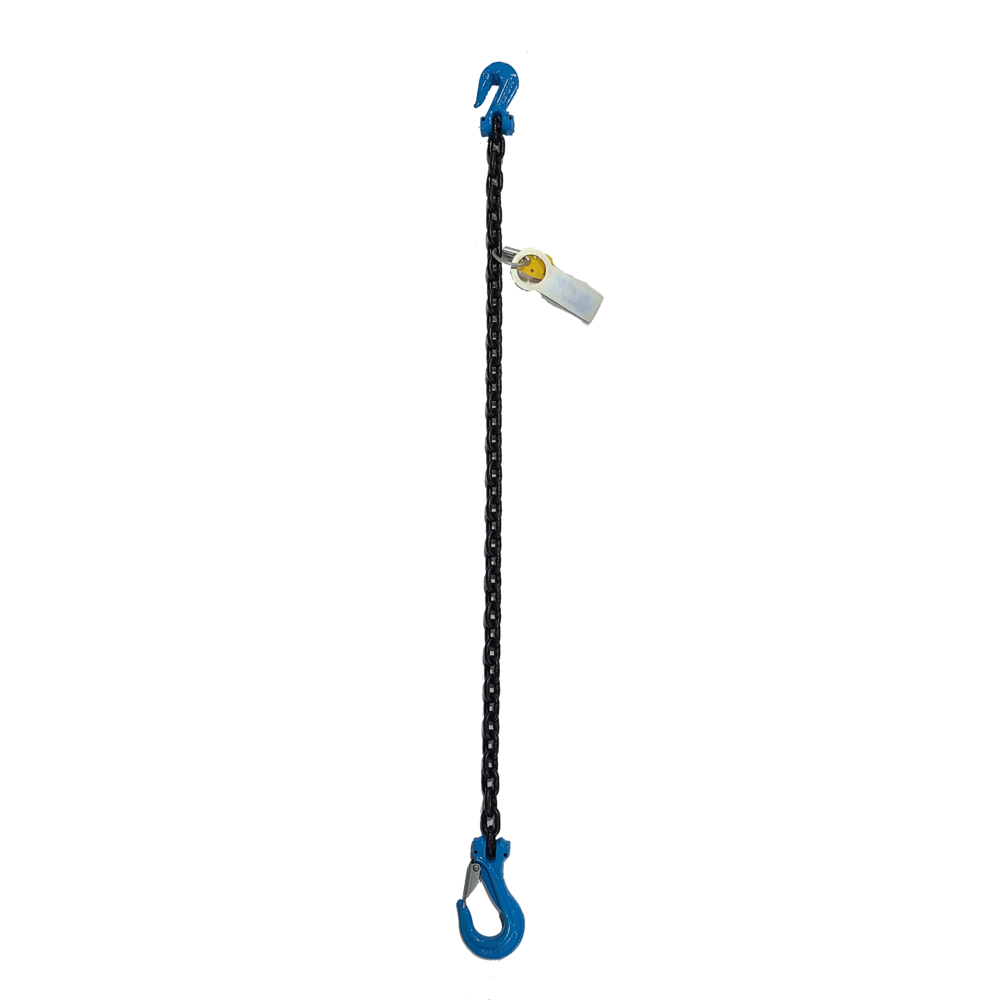

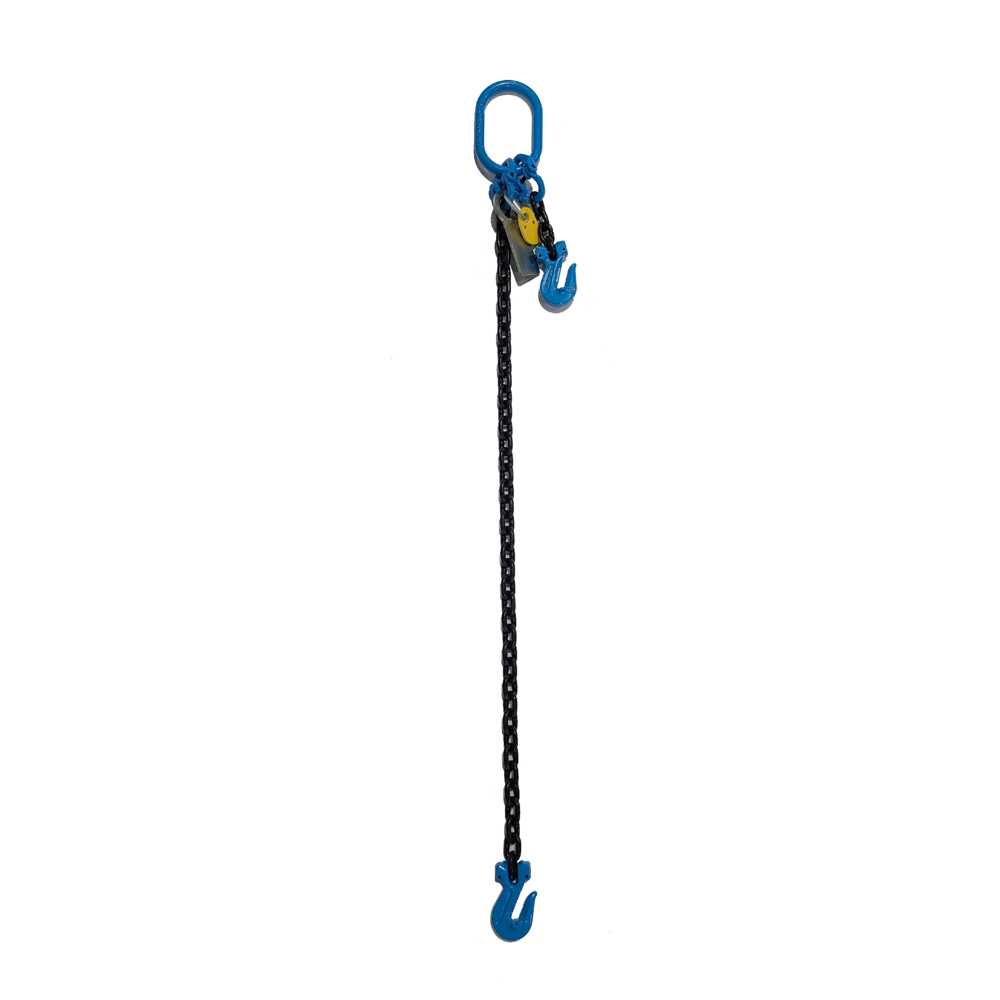

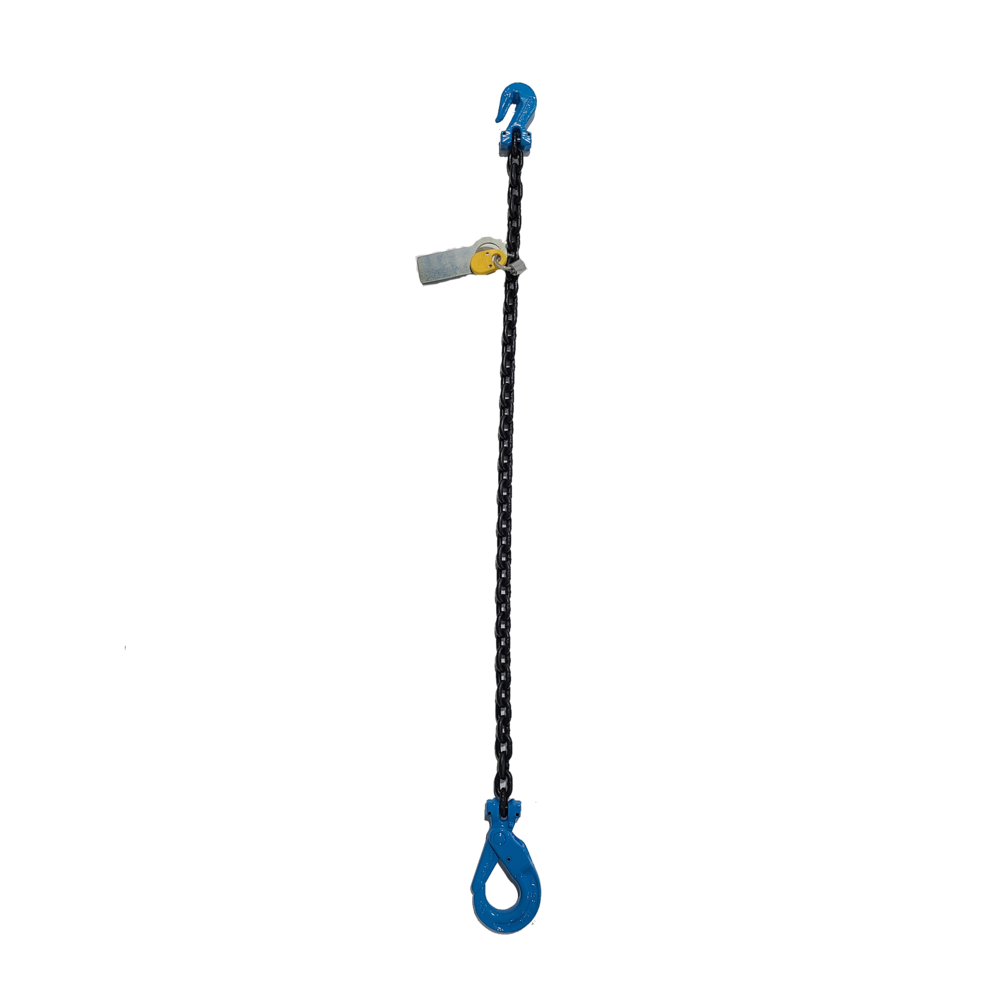

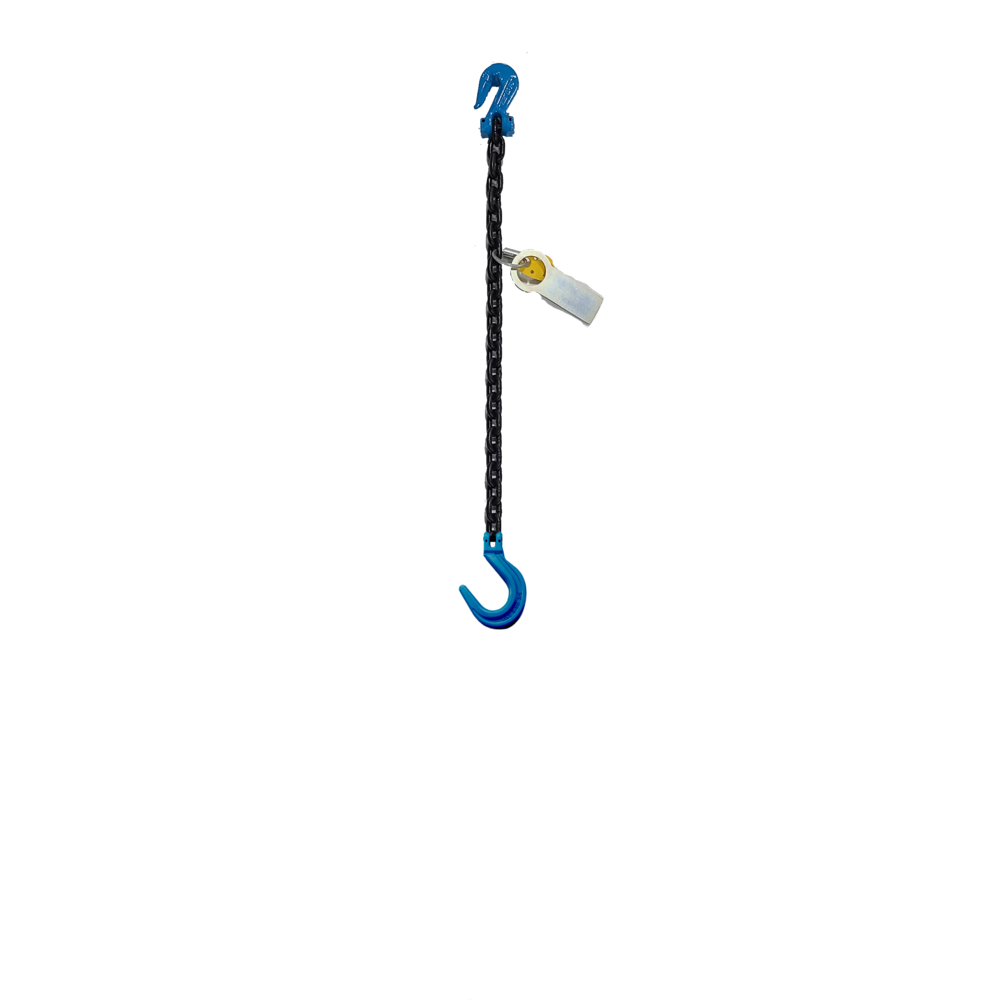

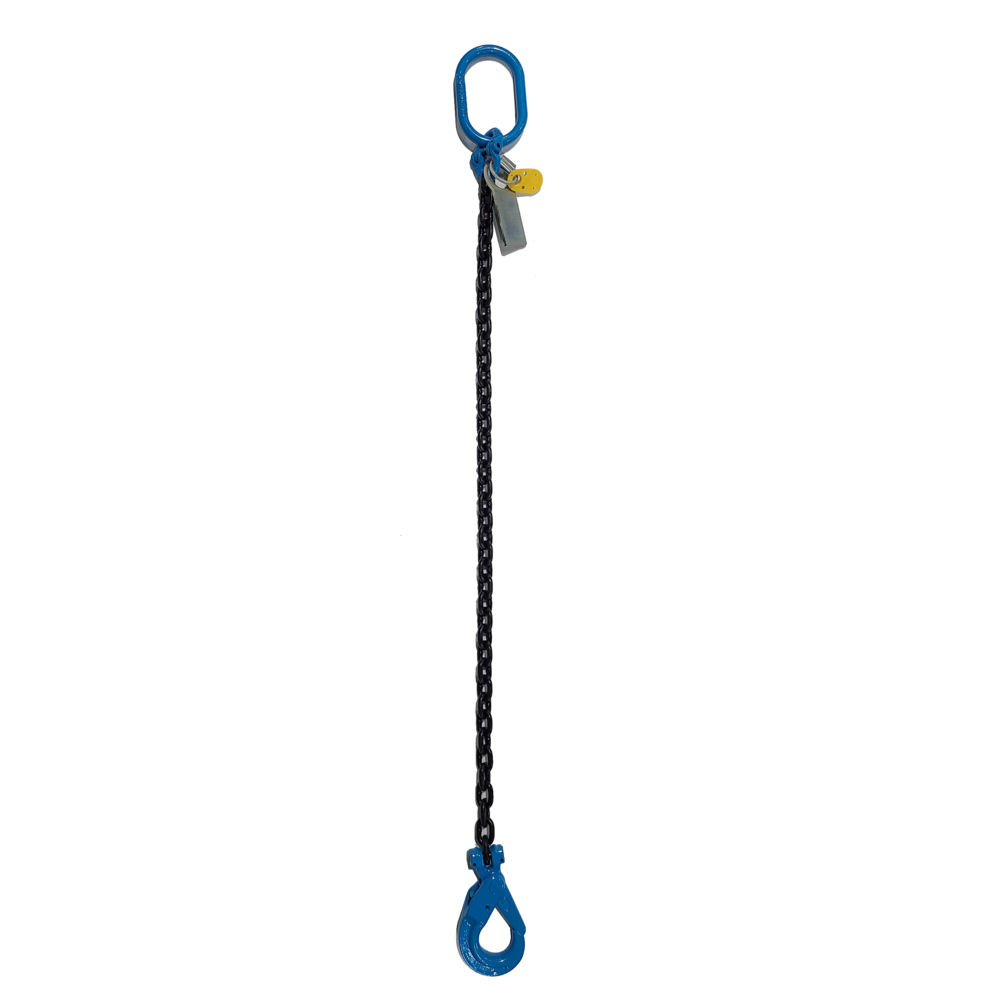

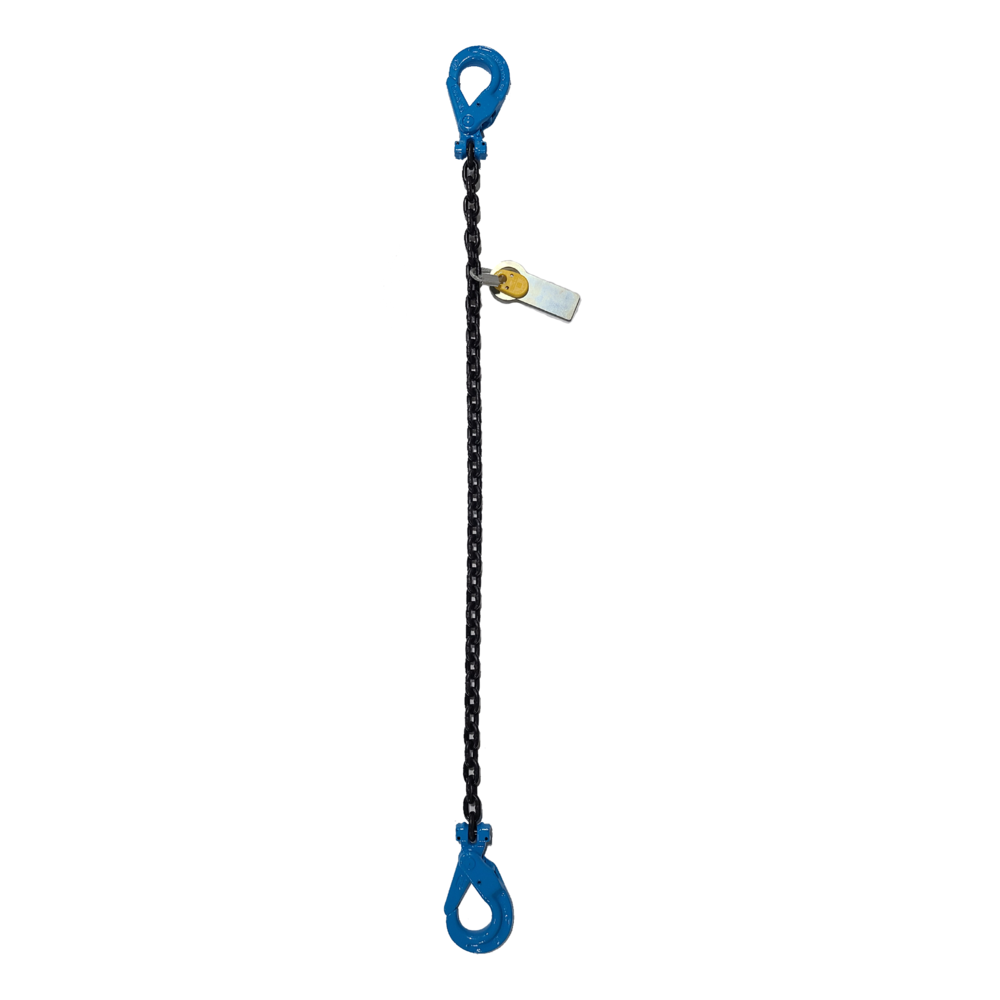

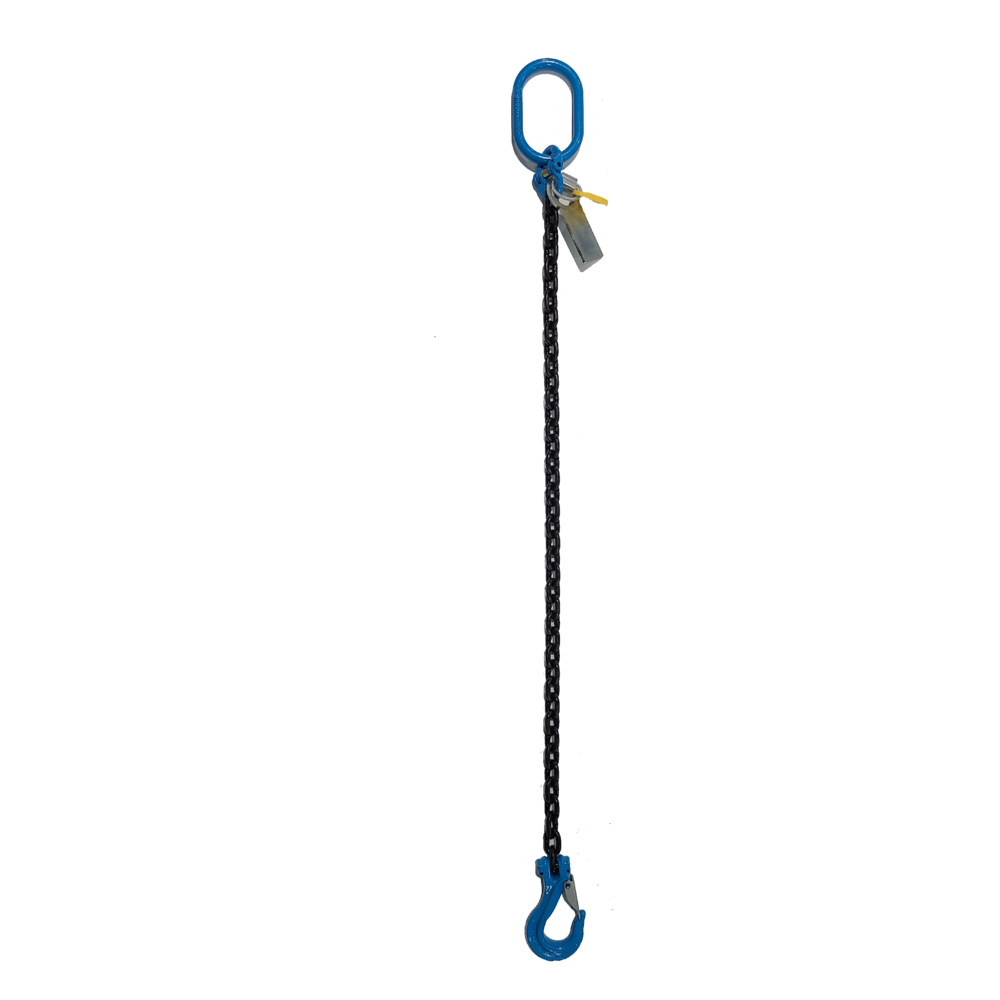

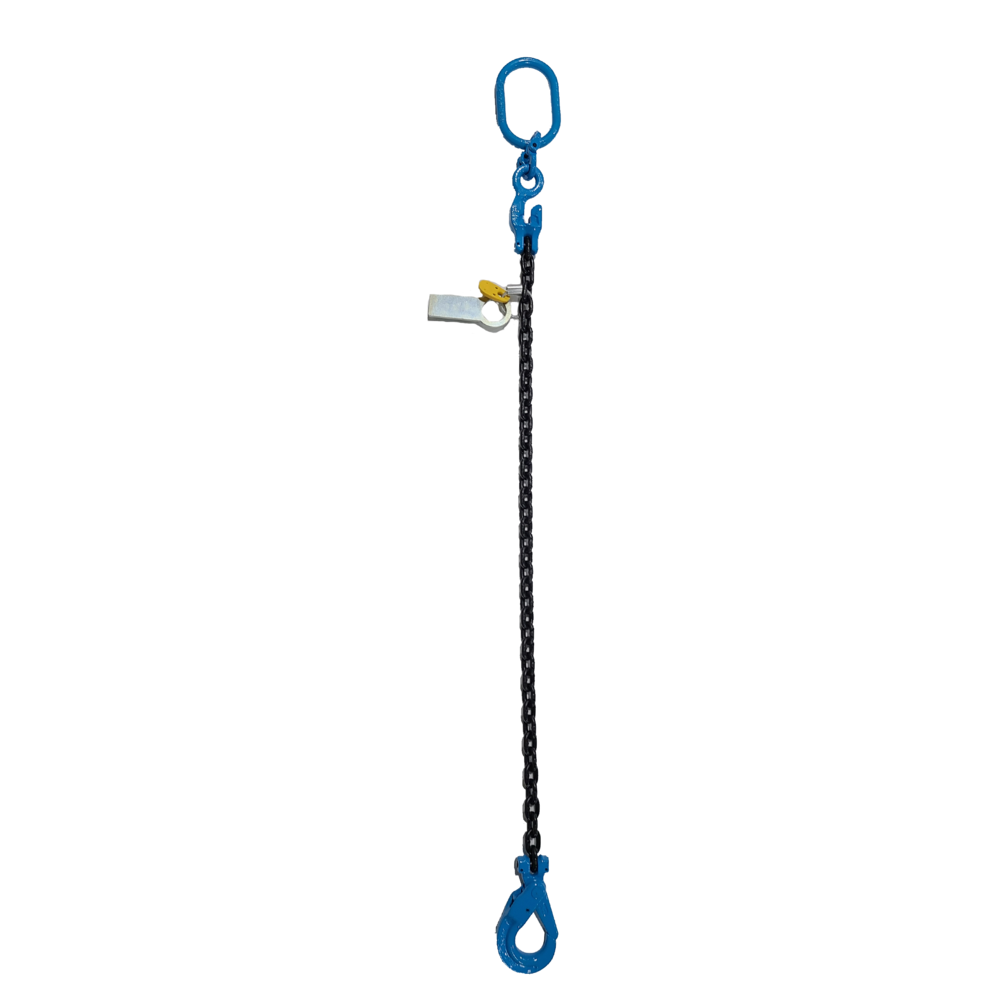

1-leg chain sling grade 100 is designed for single-point lifting where strength, durability, and flexibility in end fittings are required. It allows adaptation to different load attachment points across industrial lifting operations. Available in different configurations – see pictures.
Product benefits:
- Grade 100 alloy chain provides 25% higher strength than Grade 80.
- Available in chain sizes from 7/32" to 1-1/4".
- Durable construction suited for repeated industrial lifting operations.
All our chain slings are built and proof-tested in-house in accordance with ASME B30.9 and local standard (IHSA) requirements. Whether we are performing a certified repair or a completely new build, every single sling undergoes rigorous proof testing before it leaves our facility. Every chain sling is equipped with a heavy-duty stainless steel ID tag and a programmed RFID chip. In full compliance with regulatory mandates, every chain sling and repair is accompanied by a formal Certificate of Testing, providing the documented peace of mind knowing you meet the required safety standards.
- Material: Steel
- Temperature range: -40 °C up to +200°C
- Finish: Painted
- Warning: Not to be heat-treated
Chain Sling Grade 100
ASME B30.9
|
Design Factor 4:1 Industrial Applications |
Single Leg | 2-Leg | 2-Leg | 2-Leg | 3-4 Leg | 3-4 Leg | 3-4 Leg | ||
|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
|||
| Chain Ø | Straight pull | 60° Horizontal Angle | 45° Horizontal Angle | 30° Horizontal Angle | 60° Horizontal Angle | 45° Horizontal Angle | 30° Horizontal Angle | ||
| (mm) | (in) | Max last (WLL) in Pounds (lbs) | |||||||
| 6 | 7/32" | 2,700 | 4,700 | 3,800 | 2,700 | 7,000 | 5,700 | 4,000 | |
| 7 | 9/32" | 4,300 | 7,400 | 6,100 | 4,300 | 11,200 | 9,100 | 6,400 | |
| 8 | 5/16" | 5,700 | 9,900 | 8,100 | 5,700 | 14,800 | 12,100 | 8,500 | |
| 10 | 3/8" | 8,800 | 15,200 | 12,400 | 8,800 | 22,900 | 18,700 | 13,200 | |
| 13 | 1/2" | 15,000 | 26,000 | 21,200 | 15,000 | 39,000 | 31,800 | 22,500 | |
| 16 | 5/8" | 22,600 | 39,100 | 32,000 | 22,600 | 58,700 | 47,900 | 33,900 | |
| 20 | 3/4" | 35,300 | 61,100 | 49,900 | 35,300 | 91,700 | 74,900 | 53,000 | |
| 22 | 7/8" | 42,700 | 74,000 | 60,400 | 42,700 | 110,900 | 90,600 | 64,000 | |
| 26 | 1" | 59,700 | 103,400 | 84,400 | 59,700 | 155,100 | 126,600 | 89,500 | |
| 32 | 1-1/4" | 90,400 | 156,600 | 127,800 | 90,400 | 234,900 | 191,800 | 135,600 | |
Chain Sling Grade 100
IHSA
|
Design Factor 5:1 Construction Applications |
Single Leg | 2-Leg | 2-Leg | 2-Leg | 3-4 Leg | 3-4 Leg | 3-4 Leg | ||
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|||
| Chain Ø | Straight pull | 60° Horizontal Angle | 45° Horizontal Angle | 30° Horizontal Angle | 60° Horizontal Angle | 45° Horizontal Angle | 30° Horizontal Angle | ||
| (mm) | (in) | Max last (WLL) in Pounds (lbs) | |||||||
| 6 | 7/32" | 2,100 | 3,600 | 3,000 | 2,100 | 5,500 | 4,400 | 3,200 | |
| 7 | 9/32" | 3,500 | 6,100 | 4,900 | 3,500 | 9,150 | 7,350 | 5,250 | |
| 8 | 5/16" | 4,560 | 7,920 | 6,480 | 4,560 | 11,840 | 9,680 | 6,800 | |
| 10 | 3/8" | 7,100 | 12,300 | 10,000 | 7,100 | 18,450 | 15,000 | 10,650 | |
| 13 | 1/2" | 12,000 | 20,800 | 17,000 | 12,000 | 31,200 | 25,500 | 18,000 | |
| 16 | 5/8" | 18,100 | 31,300 | 25,600 | 18,100 | 46,950 | 38,400 | 27,150 | |
| 20 | 3/4" | 28,300 | 49,000 | 40,000 | 28,300 | 73,500 | 60,000 | 42,250 | |
| 22 | 7/8" | 34,200 | 59,200 | 48,400 | 34,200 | 88,800 | 72,600 | 51,300 | |
| 26 | 1" | 47,700 | 82,600 | 67,400 | 47,700 | 123,900 | 101,000 | 71,550 | |
| 32 | 1-1/4" | 72,300 | 125,200 | 102,000 | 72,300 | 187,800 | 153,300 | 108,450 | |
